Ford 8.8, Straight Fins
    Ford 8.8, Straight Fins
    Purchase Ford 8.8, Straight Fins
    • Ford 8.8, Straight Fins
      Part Number: dc-asm-7064

    • Cover includes magnetic drain plug and mounting hardware.
      Price varies with finish. SEE PRODUCT INFO.

      $0.00

    • OPTIONAL - add machining of a 1/8 NPT hole for an aftermarket temperature sending unit:
    •

    Number of Bolts: 10 bolts

    Volume: 0.6 quarts over stock

    Dimensions: Click here for dimensions.

    This PML differential cover is designed for rear Ford 8.8 inch ring gear applications with the 10 bolt stock cover.

    Benefits:

    • Increased fluid capacity
    • Round shape similar to stock cover
    • Fins for heat dissipation and classic styling
    • Drain hole and magnetic drain plug for easier servicing
    • Heavy duty construction to add strength to the differential housing
    • Thick gasket flange to provide a uniform clamping force on the gasket surface for a secure seal
    • Fill hole, level check hole, and a boss that can optionally be machined for a temperture sending unit
    • Hardware included

    PML makes two covers for the Ford 8.8 inch ring gear differential. PML Part Number 9519 has a pattern fin design and more clearance for pan hard and sway bars, gas tanks, spare tires and similar.

    We have one of these covers (without fill and level check holes) in the polish finish on special.

    This rear end differential cover fits many Ford trucks and SUVs. Vehicle configurations vary so check yours carefully. Some possible applications are:

    • Bronco, within in line 6 cylinder 302, 351 engines, 1987 to 1996
    • Crown Vics, 1982 to 2005
    • Expedition, 1997 to 2001 (watch clearance)
    • Explorer, 1991 to 2001
    • F–150, 1980 to 2014
    • E–150, 1992 to 2014
    • Lighting, 1993 to 1995
    • Marauder, 2003 to 2004
    • Mountaineer, 1997 and newer
    • Mustang, 1987-1995 (1996 to 2011 appear to have the same differential)
    • Navigator
    • Ranger, 4.0 engine, 1989 to 2012
    • Mazda B4000, B2300

    Always check to verify differential and available space. Configurations vary.

    Some models may have the smaller Ford 7.5 differential or the larger For 9.75 differential. Check the dimensions, number of bolts, and shape of the stock cover.

    Some models do not have clearance for a larger differential cover. Always check if you have clearance before ordering.

    PML makes two designs. This cover has a large, round shape and straight fins. The other PML Ford 8.8 cover has more clearance and patterned fins.

    This Ford differential cover is designed for non-IRS, rear differential on Ford vehicles. Some 4WD F–150 trucks have the 8.8 ring gear differential in the front but enough room for a larger than stock differential cover. For vehicles with IRS, the linkage bolts on to the cover and PML differential covers are not compatible.

    Note to Expedition owners: a larger cover may be too deep to clear the track bar that runs behind the differential cover. Using the dimensions, please check your vehicle for clearance before purchasing.

    Our thanks to our customers who have installed our covers and emailed us with feedback and pictures.

    2005 Ford Ranger Edge

    These images show this heavy duty straight fin PML cover installed on a 2005 Ford Ranger Edge.

    PML differential cover on a 2005 Ford Ranger Edge, passenger side view    PML differential cover on a 2005 Ford Ranger Edge, driver side view    PML differential cover on a 2005 Ford Ranger Edge, rear view

    1997 Ford F–150

    Nestor installed this PML rear differential cover on his 1997 F–150 XLT. He emailed us these great pictures and said "you can see from the pictures that the PML cover was a big upgrade from the Ford OEM cover".

    1997 F150 1997 Ford F150   1997 f150 stock cover 1997 F150 stock rear differntial cover   Inside of PML and Ford covers Comparing the inside of the PML cover to the stock Ford 10 bolt cover from a 97 F150   97 F150 stock cover and PML cover 1997 F150 stock differential cover and PML cover
    Ford 10 bolt stock cover and PML cover heights PML cover is deeper and prettier   PML 10 bolt Ford 8.8 rear differential cover installed on a 97 F150 PML 10 bolt Ford 8.8 rear differential cover installed on a 1997 F150   PML cover to 1997 F150 spare tire Plenty of clearance to spare tire with PML cover installed on a 1997 F150   Back view of PMl cover on 97 F150 1997 F150 looking good with PML 10 bolt Ford 8.8 rear differential cover installed
    Click on image to view larger in a new tab or window.

    Drain, Fill, Level Check and Optional Temperature Sensor Machining

    PML diff cover for Ford 8.8 drain hole

    This PML cover includes a drain on the bottom of the cover and fill holes on the side and the top

    Some Ford differentials have a factory fill location on the driveshaft side of the third member. Newer vehicles do not and can use the fill hole on the differential cover.

    For a temperature sending unit, PML can machine the boss under the level check. This location is at about 4 o'clock. This is optional and there is a machining charge.

    In the Package

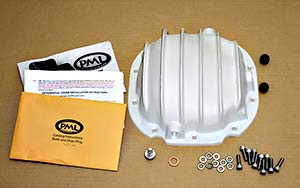

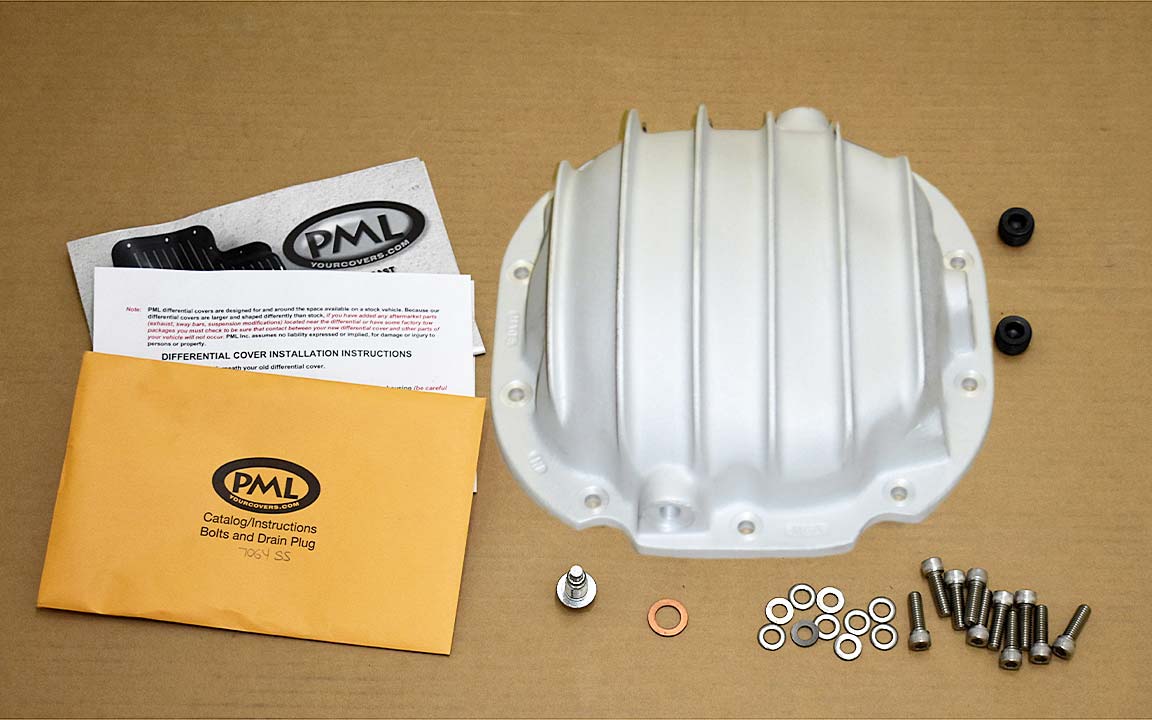

    PML Ford 8.8 cover ships with bolts and plugs  Click on image to view larger.

    PML includes new mounting bolts, washers, fill and level check hole plugs, and a magnetic drain plug with a copper sealing washer with the cover.

    Inside of Cover

    Inside of PML straight fin differential cover for Ford 8.8 10 bolt rear differentials  Click on image to view larger.

    On the inside, the cover is rounded, following the profile of the ring gear area in the stock cover.

    PML Differential Cover Compared to Stock

    PML Differential Cover Part Number 7064 compared to stock   PML Differential Cover Part Number 7064, compared to stock, top view
    Click on image to view larger in a new tab or window.

    This image compares the depth of both PML Ford 8.8, 10 bolt rear differential covers and the stock cover. Click on image to view larger in a new tab or window.
    PML Ford 8.8 Differential Covers depth comparisons
