PML GM 8.875 12 Bolt Car Differential Cover

Description

Volume: 1.0 quarts over stock

Dimensions: Click here for dimensions.

Depth inside is 3 ¾ inches

Number of Bolts: 12 bolts

This PML cover fits the GM 8.875 inch (8 7/8") ring gear 12 bolt differential for cars.

Benefits:

Extra capacity
Drain hole and magnetic plug to simplify maintenance
Fins for heat dissipation and classic styling
Sand cast aluminum construction for thick walls
Machined gasket flange for a secure seal
Round shape similar to stock cover

Applications

This differential cover fits the rear end on the GM Corporation 8 7/8" (8.875") 12 bolt differentials used on many GM and Chevy cars in the 1960s and 1970s. Some vehicles which may be able to use this cover include:

Camaro 1967 to 1972
Chevelle 1965 to 1972
El Camino 1965 to 1972
Monte Carlo 1970 to 1972
Nova 1965 to 1967

Always check to verify differential and clearance for a larger cover. Configurations vary. GM 8.2 inch ring gear 10 bolt differentials were also used on many of these vehicles. This cover is larger than stock so check space available.

Oldsmobile cars in the 1960s and 1970s may have a similar looking 12 bolt rear differential cover. Oldsmobile offered a similar differential for such vehicles as the 442 and Cutlass. The differential cover for these applications is about 1/4 inch different than this one. PML does not make a cover for these Oldsmobile differentials.

Cadillac also made their own differentials for some of their cars.

Installations

1972 Chevy Concours Wagon

Arturo installed this PML 12 bolt cover on his 1972 Chevrolet Concours Wagon with a 350 4 barrel 175 HP motor.

1972 Concours Wagon stock cover for 1972 Chevy wagon PML 8.875 differential cover installed
Click on image to view larger in a new tab or window.

1955 Chevy Pick Up

Bill chose this PML differential cover for his GM 8.875 ring gear car–type rear axle and orange powder coat PML small block valve covers for his heavily modified Chevy 350 crate motor. This Pickup is a 2018 Hot Rodder Top 100.

1955 Chevy Pickup PML differential cover PML valve covers installed
Click on image to view larger.

Specifications

Drain

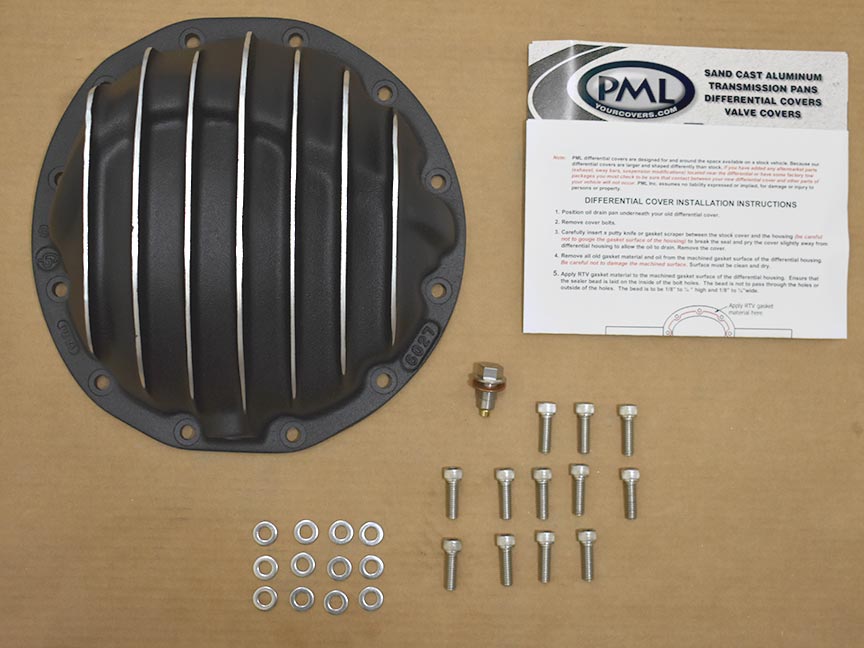

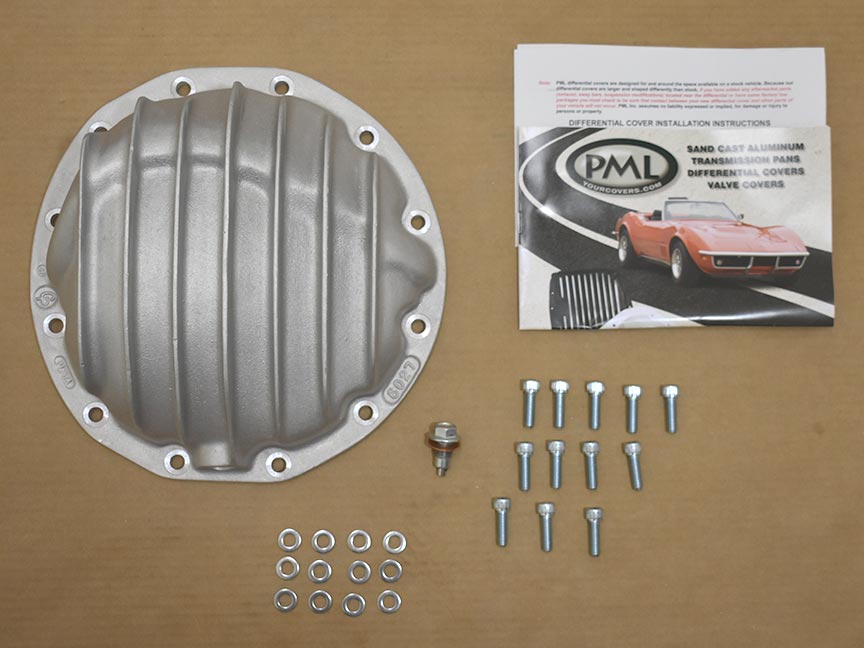

During servicing, a hole on bottom of PML cover provides quick and easy draining of fluid without removing the cover. PML includes a magnetic drain plug with each cover. Cover also ships with new mounting bolts.

Click on image to view larger.
