GM 2023+ Canyon, Colorado Rear 10 Bolt
    GM 2023+ Canyon, Colorado Rear 10 Bolt
    Purchase GM 2023+ Canyon, Colorado Rear 10 Bolt

    • GM 2023+ Canyon, Colorado Rear 10 Bolt
       Part Number dc-asm-11195

      • 10 bolt rear differential cover for 2023 and newer GMC Canyon and Chevy Colorado trucks. Earlier year GM 10 bolt rear differentials have a different size and bolt hole pattern. <br><br> We are making these. Parts available this summer, around August 2026. Please email us if you would like to purchase this aftermarket cover in 6 to 12 months. <a href="/contact-us.html">Contact us</a> with your name, phone number, email and vehicle information. If you contact us by February 24, we will reserve one for you. <br><br> Scroll down for more info!

    Volume: 3/4 quart over stock

    Dimensions: In inches, this cover is 10.4 tall x 11.2 long x 4.1 deep.

    Number of Bolts: 10

    Pricing: similar to our other covers, $255 in the natural cast finish and $320 in black powder coat

    Benefits:

    PML designs and manufacturers differential covers with these benefits.

    • Curved shape similar to stock cover for correct fluid movement
    • Maintains clearance for fitment
    • Drain and magnetic drain plug included
    • Heavy duty, sand cast aluminum
    • Finned for heat dissipation
    • Extra capacity
    • Thick, machined flat gasket flange for a secure seal
    • Fill/level check is at the same location as the stock cover fill/level check
    • Made in USA

    This is a new differential design from GM. Ring gear is probably 8.6 to 8.9 inches.

    The classic GM 10 bolt 8.5, 8.6 inch ring gear differential cover found on 1970s to 2021 cars, trucks and SUVs, has a different shape and bolt hole pattern although it looks very similar to this one. See PML part number 6082 for an example of this older GM 10 bolt differential.

    Stock Cover

    Pictures of stock cover outside, inside and box label:
    GM OEM stock Colorado and Canyon 10 bolt rear differential cover   GM OEM stock Colorado and Canyon 10 bolt rear differential cover, inside   GM part number, label of stock cover box
    Click on image to view larger.

    • 2023 and newer GMC Canyon 2.7L Gas, AT4, AT4X, Denali, Elevation
    • 2023 and newer Chevrolet Colorado 2.7L Gas, LT, Trail Boss, WT, Z71, ZR2

    Vehicle configurations vary and PML cannot guarantee fitment so please verify differential and clearance before ordering.

    2024 Canyon AT4X

    Our thanks to Steve for working with us on this differential cover. He installed this cover on his 2024 GMC Canyon AT4X 4WD truck with locking front and rear differentials.

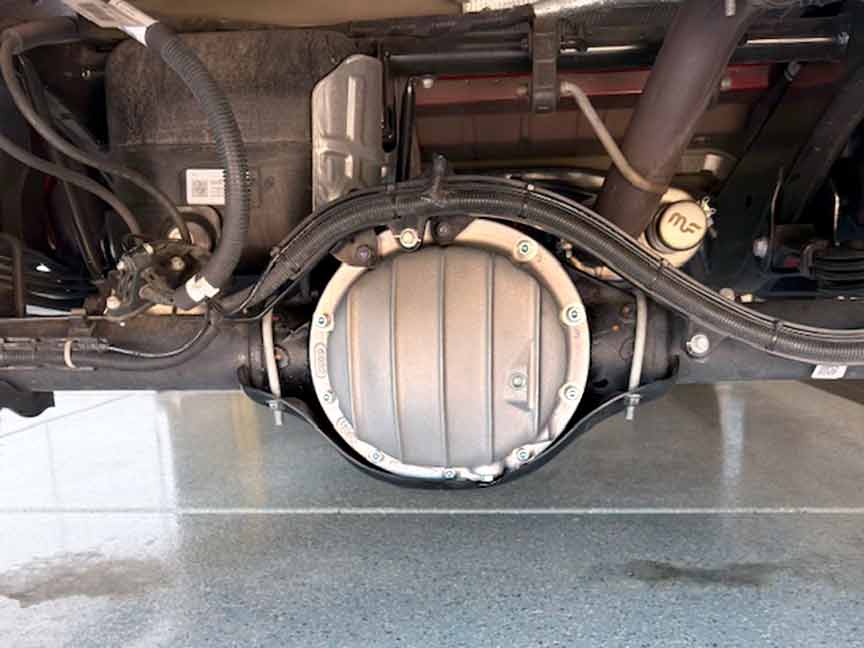

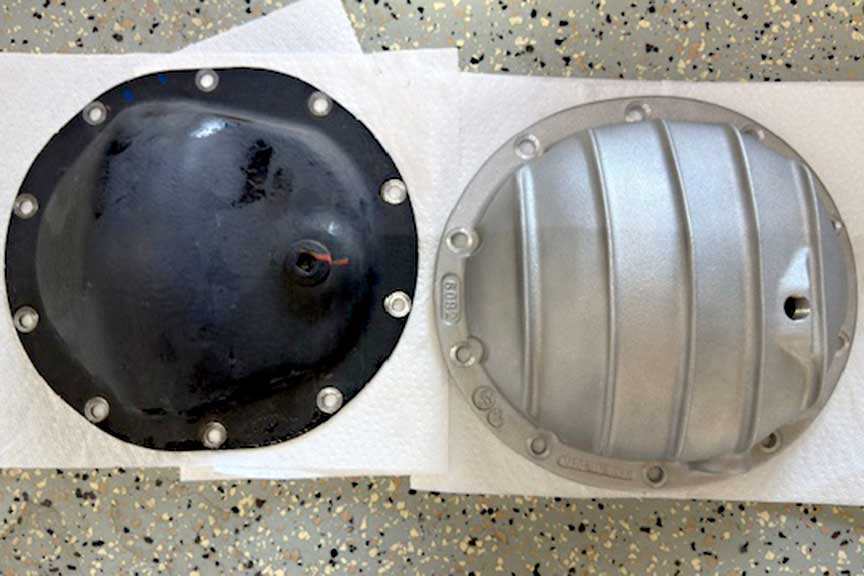

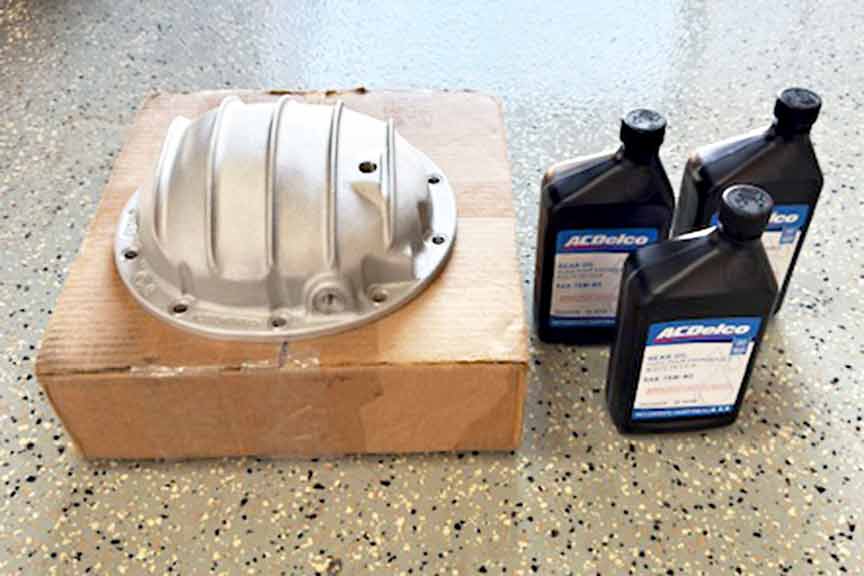

    2024 GMC Canyon AT4X 2024 Canyon   fluid for rear diff on 2023+ Canyon, Colorado new PML diff cover and fluid   PML diff cover and factory cover side by side for 2023+ Canyon, Colorado differentials PML diff cover and stock cover   PML 10 bolt rear diff cover installed on a 2024 GMC Canyon PML diff cover installed

    Click on image to view larger in a new tab or window.

    Gasket

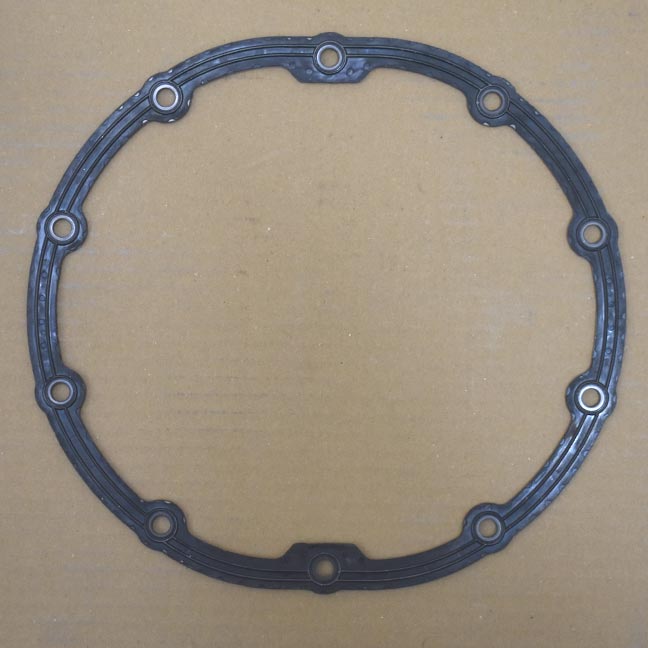

    PML designed this cover to work with the factory OEM gasket. The GM AC Delco part number is 8572-1785.

    GM 10 bolt differential cover gasket package   GM 10 bolt differential cover gasket  Click on image to view larger.

    Inside of PML Diff Cover

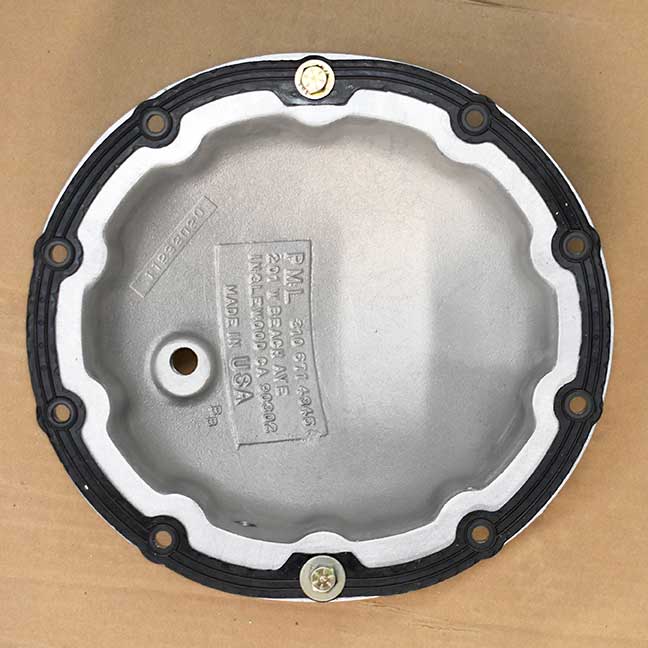

    This PML cover has a curved back shaped similar to the factory stock cover. This picture of the inside shows the stock gasket bolted on to verify the bolt hole positions.

    PML 2023+ GM 10 bolt differential cover inside  Click on image to view larger.
