PML GM 10L80 Deep Transmission Pan

Description

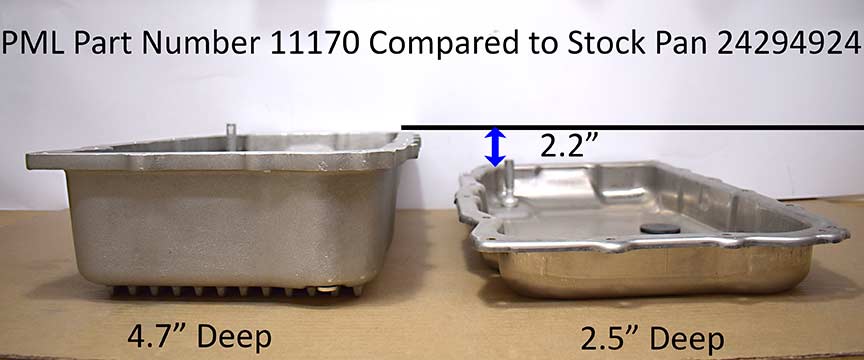

Volume: 3.25 quarts over stock capacity of OEM pan, GM part number 24293671/24043538.

Dimensions: Click here for dimensions.

Number of Bolts: 16 bolts (there are 18 holes, 2 holes locate the gasket and 16 holes for bolts to hold the pan to the transmission case)

Pricing: not yet available

Benefits of PML Design

Extra capacity
Finned to increase surface area for heat dissipation
Drain and magnetic drain plug
Thick walls and gasket flange
Heavy duty construction
Compatibility with OEM vehicles with the fluid level check in the OEM pan

PML designed this transmission pan with many benefits while keeping in mind clearance issues such as exhaust cross over pipes.

The PML pan can replace stock pans with or without the fluid level check on the OEM transmission pan.

May also fit GM 10L60 transmissions.

Status

In 2024, we made some prototype pan for GEN1 transmissions. We have a few of these available. After updating the design, we are making more prototype pans. Prototype testing to begin June 2025. If you are interested in PML's prototype program, email us at [email protected]

Subscribe to our GM 10L80, 10L90 mailing list

Please sign up for our email list so we know that you're interested in this pan. You will get updates about this project (like 2 or 3 emails per year).

Applications

The 10L80, 10L90 and 10L60 may be able to use the same transmission pan.

Vehicles such as 2020 and newer Cadillac, Chevrolet and GMC trucks and cars may be able to use this transmission pan:

2020 and newer Camaro
2020 and newer Silverado 1500
2020 and newer Sierra 1500
2019 and newer Suburban
2018 and newer Yukon and Tahoe
2018 and newer Escalade and some CT4, CT5, CT5

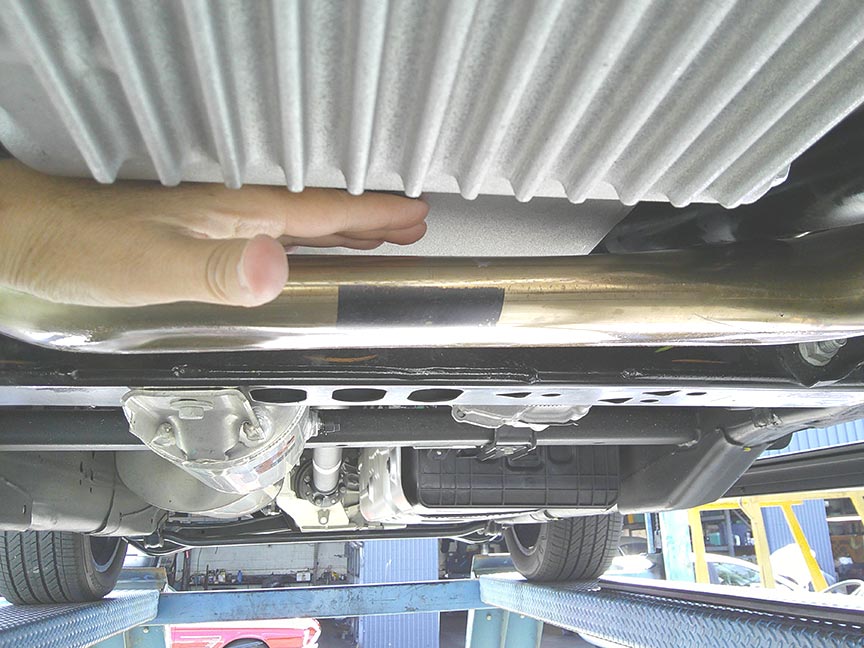

Always check your vehicle configuration before ordering! Models vary. Transmissions other than the 10L80 are possible. This PML pan is larger than stock so check clearances.

Although Ford and GM jointly developed this 10 speed transmission, GM 10 speed 10L80 transmissions began appearing in 2020 models and Ford 10 speed 10R80 transmissions began appearing in 2017 models. The transmission pans are not interchangeable.

Installations

2019 Sierra 1500
2019 Yukon Denali
2018 Tahoe

2019 Sierra 1500

Our thanks to Paul for installing this PML pan and providing his feedback and many pictures. Paul reported that the PML pan was a 100 percent match and installed with no clearance issues whatsoever.

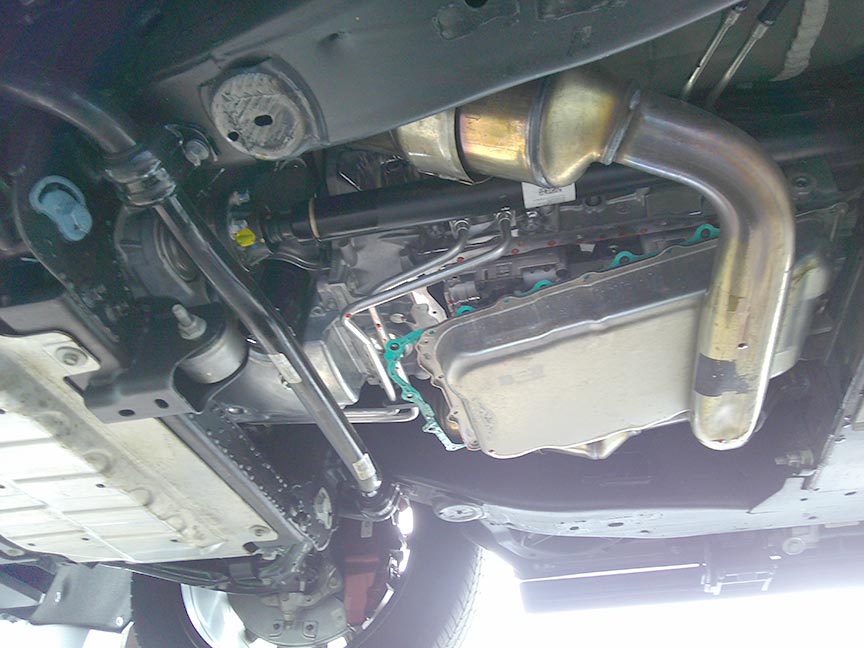

Paul installed this pan in his driveway/garage and took 3 to 4 hours. His truck has true dual exhaust so he loosened one side of the exhaust from the header flange to drop the pipe 2-3 inches. A lisiting of the tools he used is below the pictures.

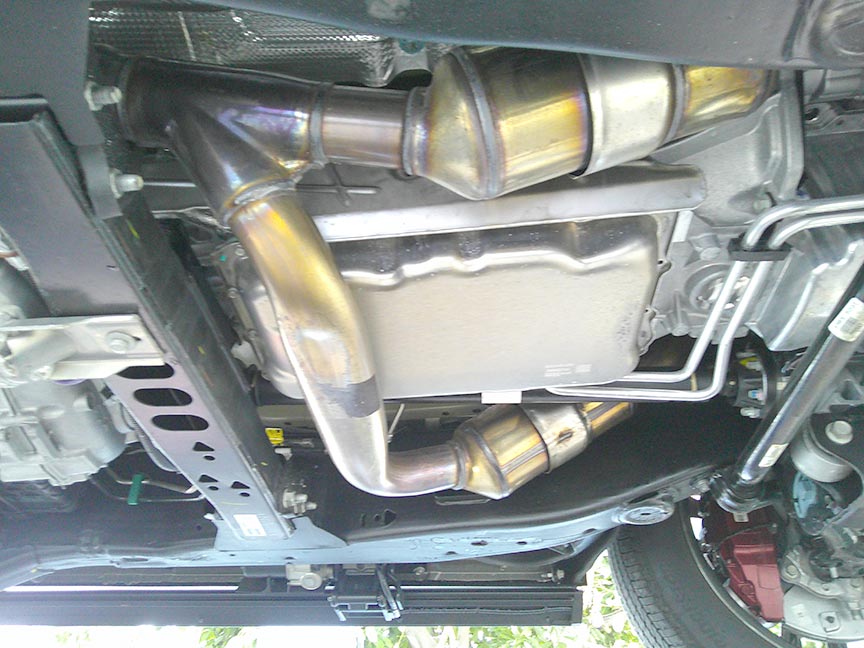

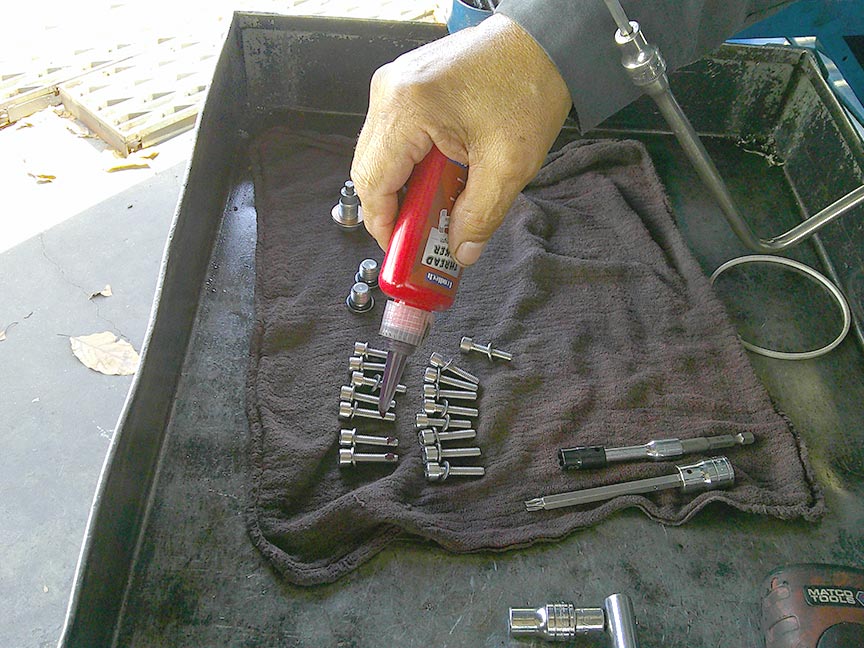

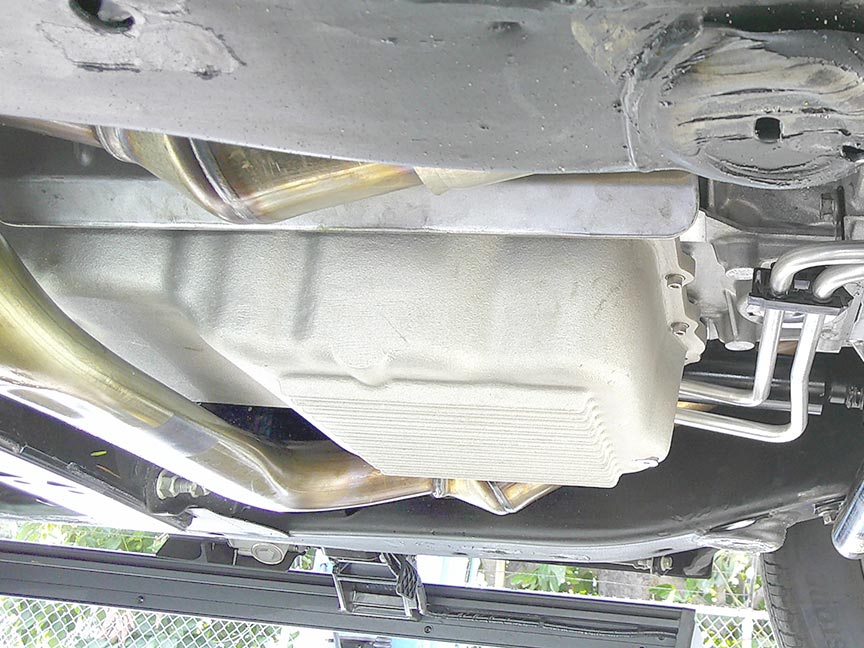

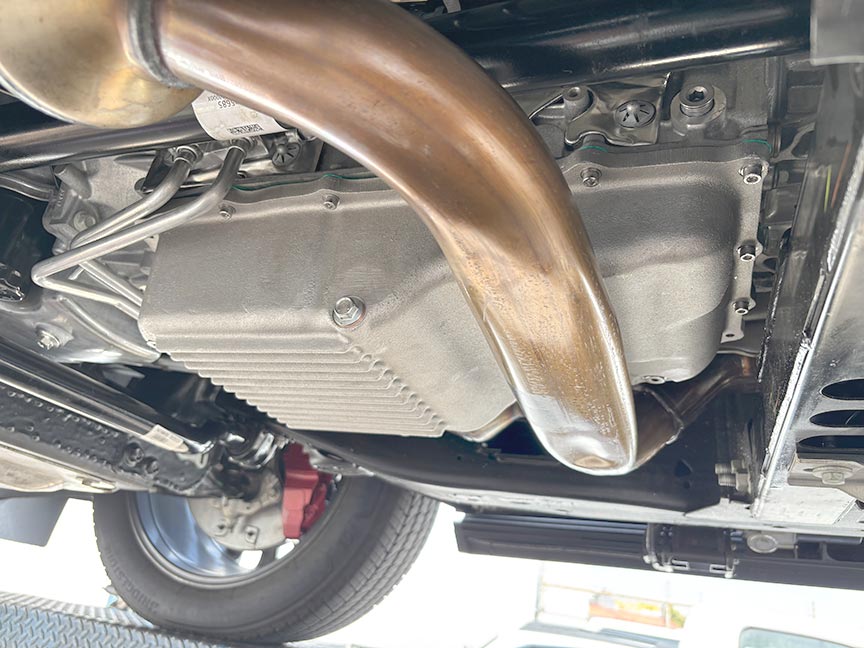

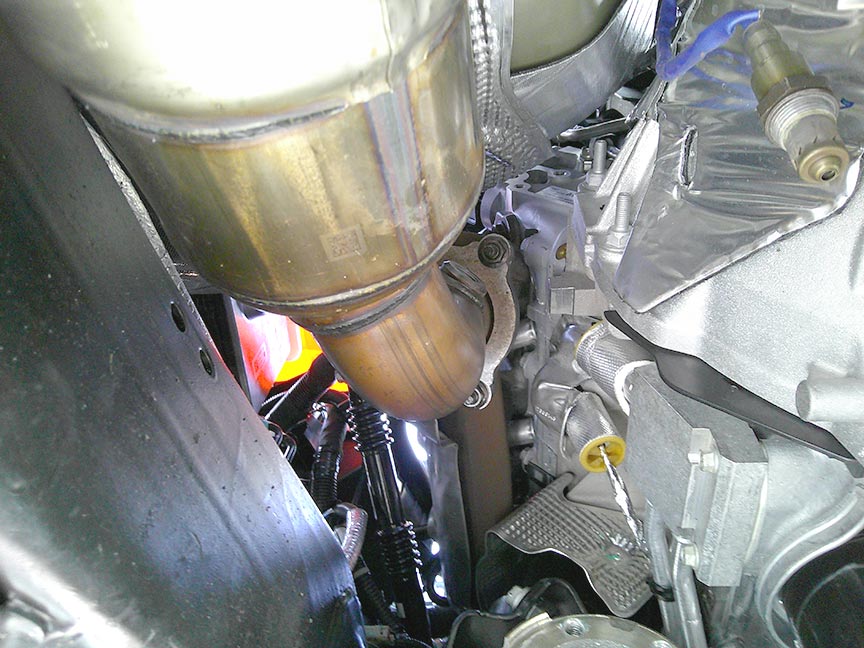

2019 Sierra 1500 GM OEM pan GM part number for OEM pan exhaust pipe loosened for more space to install PML pan OEM gasket on PML pan tools used for installation 22mm oxygen sensor socket PML pan installed, front and right side, clearance good PML pan fits fine, no concerns with near by tubes PML 10L80, 10L90 pan installed
Click on image to view larger in a new tab or window.

Tools Paul used:

Rhino Ramps
7 qt or larger CLEAN oil drip pan
Fluid transfer pump – I used a Everbilt drill powered pump from Home Depot
3/8 Impact driver
1/4 Electric Ratchet
Electric Drill
10mm 1/4 socket
15mm 3/8 socket
15mm 3/8 deep socket
E10 or E12 (inverted Torx) socket for filter
3/16 Hex bit socket (preferably one with a ball end)
6 inch 1/4 extension with wobbly end
6 inch 3/8 extension with wobbly end
6 inch 3/8 extension
10 inch 3/8 extension
22mm O2 Sensor socket
3/8 Torque Wrench
3/8 Ratchet
1/2 Ratchet
8mm L shaped Hex key
Anti Seize Lubricant
Blue Loctite
Plumbers Teflon Tape
Leather work gloves
Spray Penetrant oil

2019 Yukon Denali

Mike at Long's Auto in Menifee, CA, installed this transmission pan on a 2019 GMC Yukon Denali 10 Speed Automatic 10L80 6.2L V8 4WD. OEM pan part number was 2428 8491.

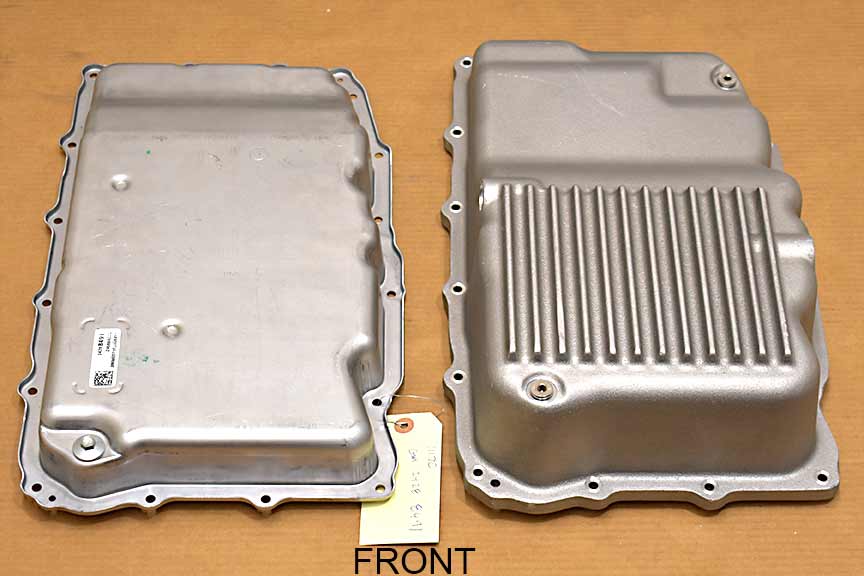

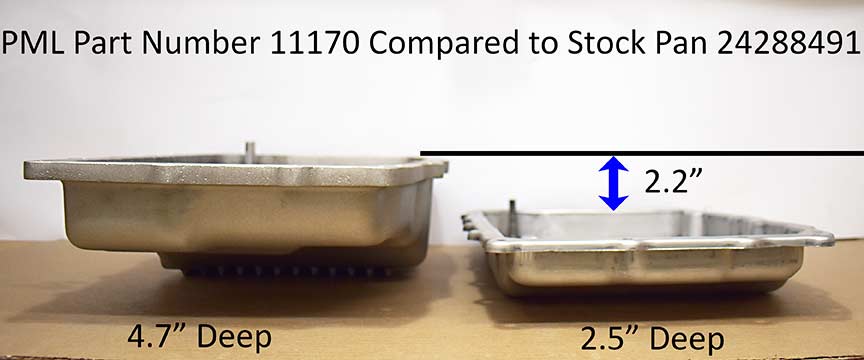

2019 Yukon Denali original stock pan PML pan and OEM stock pan OEM stock pan level check standoff pipe PML pan level check standoff pipe at same level as OEM PML 10L80 pan installed
Click on image to view larger in a new tab or window.

2019 Tahoe

Mike installed this PML 10 speed transmissin pan on his 2019 Tahoe Premier Plus 6.2L.

2019 Tahoe drain on PML pan PML 10L80 pan installed
Click on image to view larger in a new tab or window.

Specifications

Gasket and Filter

This PML transmission pan works with the OEM gasket and filter.

Inside of PML Pan

inside of PML 10L80 pan

Included with PML Transmission Pan

PML includes a magnetic drain plug and copper sealing washer, new mounting bolts, and plugs for the level check/fill holes. A barb hose fitting is also included for those applications that must check the fluid level on the pan.

Included with PML 10L80 pan Click on image to view larger.

Stock Pans

PML designed their 10L80 pan as a replacement for the stock pan on many vehicles.

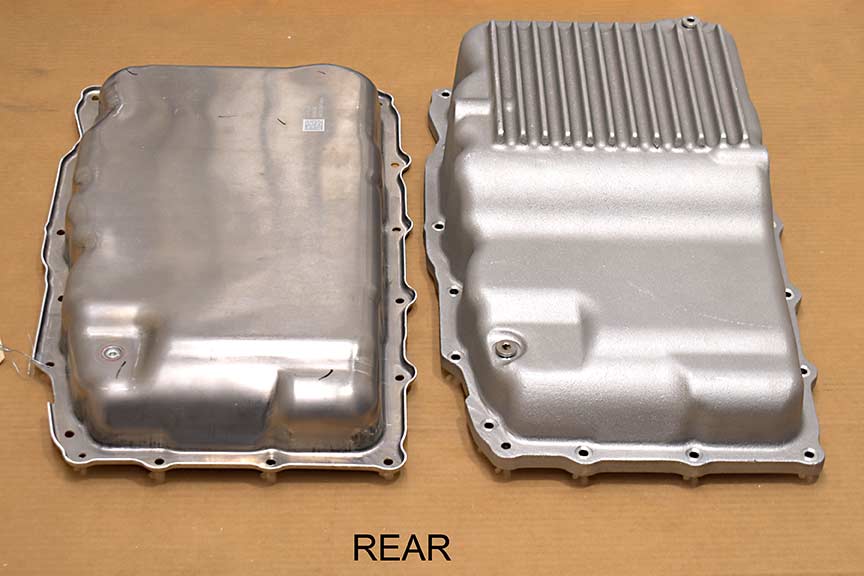

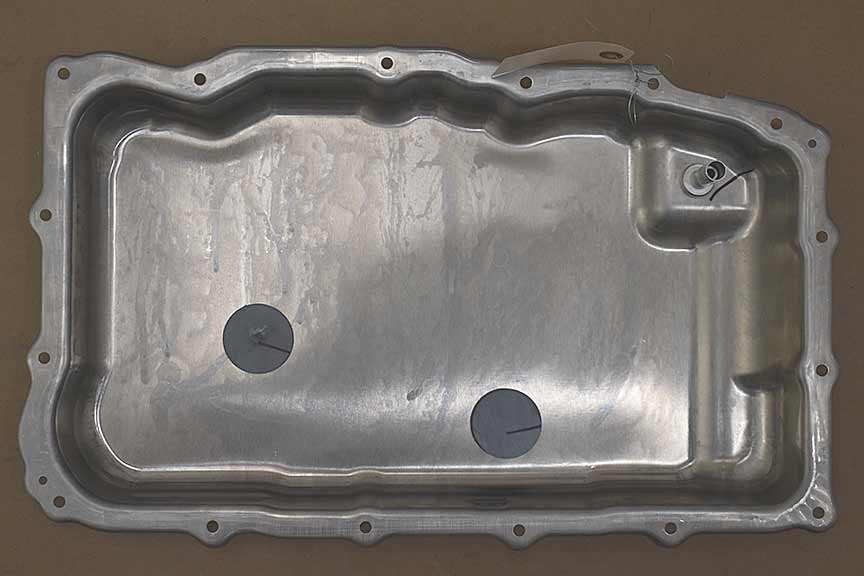

There are several different stock pans for the GM 10L80. One GM AC Delco stock pan part number is 24293671 or 24293672 (24043536). Another possible stock pan is part number 24294924. This may be for the 10L60. Some pans have stand off pipes in the pan for checking the fluid level.

This is the pan for a 2019 Tahoe with the GM 10 speed transmission. GM AC Delco stock pan part number is 24293671.
10L80 transmission pan 10L80 transmission pan, front view 10L80 transmission pan, front view
Pictures of GM Part Number 26293671, click on an image to view larger.

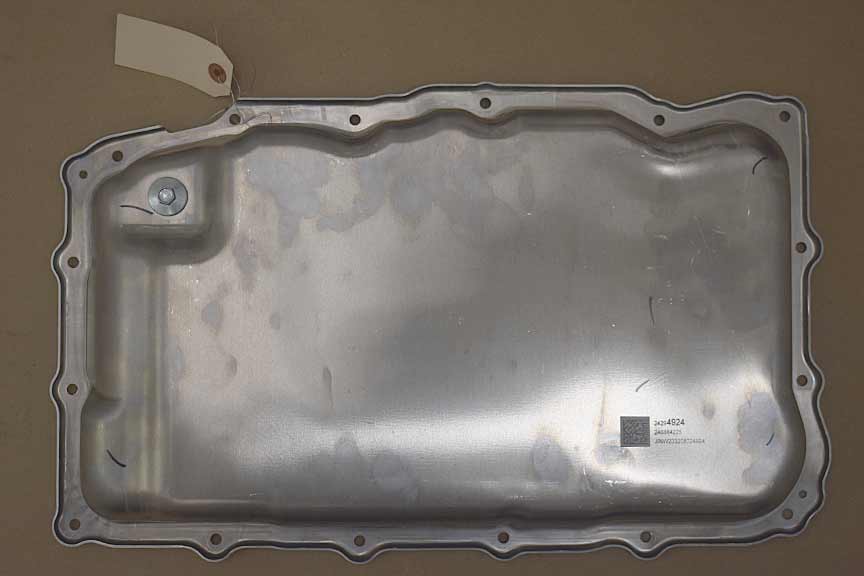

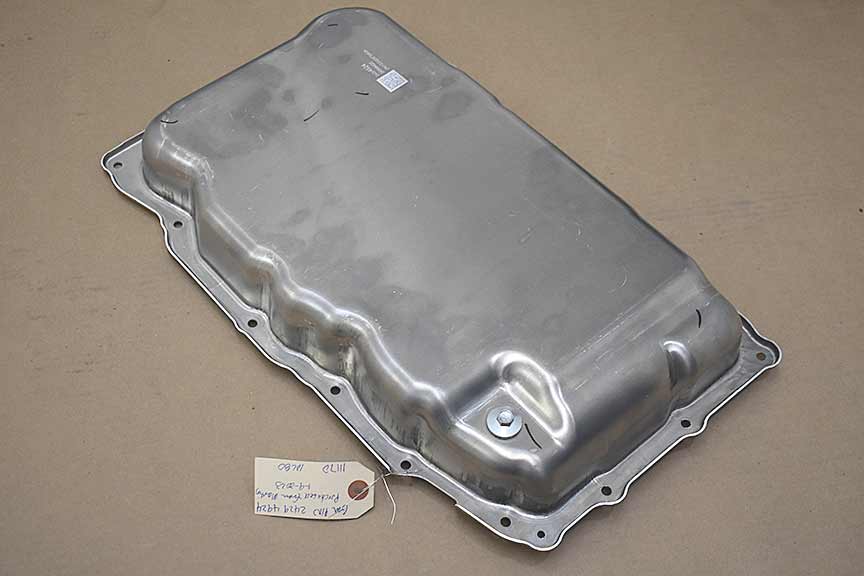

These are pictures of a stock pan with the level check stand off pipe, part number not known.
10L80 transmission pan with level check side view side view level check stand off pipe
Pictures of GM 10L80 pan with level check stand off pipe, click on an image to view larger.
