Dimensions:
Click here for dimensions.
Number of Bolts: 4 per cover, on the perimeter, straight across
Finishes: Read about finishes and construction of PML parts.
PML designed these small block Chevy valve covers with fins and CHEVROLET script for a classic look to dress up the engine compartment.
Benefits:
- Classic CHEVROLET script and fins
- GM licensed product
- Heavy duty sand cast aluminum construction
- Thick flange will not flex when bolts are tightened
- Mid height design to work with many roller rocker systems
- Standard perimeter 4 bolt mounting to cylinder head found on 1959 to 1986 Chevy small block engines
- Mounting bolts provided
- Made in USA
The script is cast into the cover and raised. On powder coated parts, the powder coat is shaved off the top of the script. On polished finish parts, the band is not polished to provide contrast to the script.
Configurations vary! Before ordering go to our CHECKLIST.
We have 3 sets of these valve covers on SPECIAL: SPECIAL 426 (as cast finish, machined with PCV/breather holes), SPECIAL 448 (as cast finish, machined with PCV/breather holes), and SPECIAL 465 (as cast finish, one hole machined)
Licensed GM product. All related Emblems and vehicle body designs are tradmarks of General Motors LLC, used under license to PML, Inc.
These PML valve covers are standard flange mount covers for V8 small block Chevy engines (265, 283, 327, 350, 400). The valve covers mount on to the cylinder heads with four bolts on the perimeter, directly across from each other. These valve covers can fit the small block engines originally produced in 1959 to 1986 and many new crate motors.
We fit each cover on a stock GM cylinder head with stock rocker arms.
See SPECIFICATIONS for information to determine if these valve covers will for your engine configuration. Always check before ordering as PML has a restocking fee.
Loaner Program
We want to make sure you get valve covers that will work on your engine and you love looking at. With that in mind we have a program for borrowing a PML valve cover to test fit on an engine. Learn more about the PML Loaner Program.
Customer Installations
- 1957 Chevy Belair, 413 Dart
- 1955 Chevy Belair, 383 Stroker
- 1955 Chevy Belair, Tri-Power
- 1955 Chevy Pickup, 350 Crate
- 1955 Chevy with 1980 Engine
- 1932 Ford
- 1931 Ford Model A
- Chevy with Edelbrock Performer RPM Intake
1957 Chevy Bel Air, Custom Powder Coat
Tyson built this power house 413 Dart small block Chevy engine dressed up with PML valve covers for his 1957 Chevy. He purchased the PML valve covers in the natural as cast finish since he did not want the fins brushed. He powder coated the engine with the valve covers for a perfect color match.
Dart 413 small block Cheavy, PML valve covers, custom powder coated
Click on image to view larger.
1955 Chevy Bel Air 383 Stroker
Bob chose the polish finish for his 383 Stroker engine in his 1955 Chevy Bel Air Wagon.
His pictures are of: Bel Air Wagon, Stock Valve Covers, Bel Air Waiting for the Engine, Engine with PML Valve Covers, Engine Installed, Driver Side View of Engine
1955 Bel Air Wagon
Stock valve covers
Empty Engine Compartment
Engine ready to go

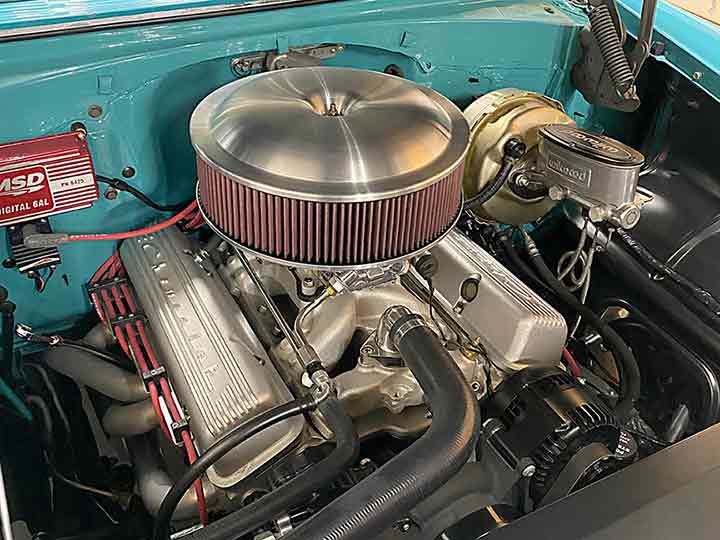

383 small block Chevy installed

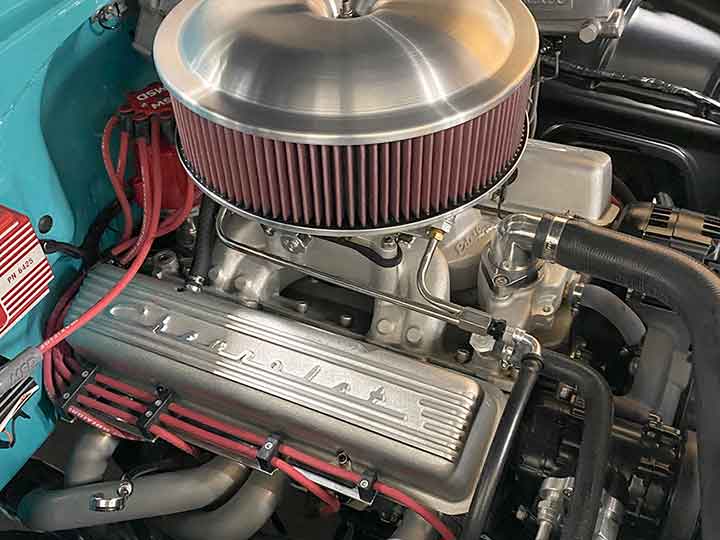

383 Small Block with PML Chevrolet valve covers
Click on image to view larger in a new tab or window.
1955 Chevy Bel Air Tri–Power
Tri-Power Carburetion, by Larry Fulton at HotRodCarbs.com. Our thanks to Larry for sending us pictures and for selecting quality PML valve covers for this project. Owner of this beautiful '55 Chevy is Richie Polleri.
Valve covers were polished and then custom painted.
Click on image to view larger in a new tab or window.
1955 Chevy PIckup
This Pickup is a 2018 Hot Rodder Top 100.
Bill chose the orange powder coat PML valve covers for his heavily modified Chevy 350 crate motor and a PML differential cover for the GM 8.875 ring gear car–type rear axle.
1955 Chevy Pickup
PML differential cover
Hot Rodder Top 100
PML valve covers installed
PML valve covers, 283 motor
Click on image to view larger in a new tab or window.
1955 Chevy with 1980 Engine
Ken Bethel is putting this 1980´s engine in his 1955 Chevy:
Click on image to view larger.
He said these PML small block Chevy valve covers "are exactly what I had envisioned when I began the search for just the right valve covers for my 55 Chevy project.".
1932 Ford
Pat installed a Small Block 350 Crate Motor in his 1932 Ford 5 Window Coupe and selected PML valve covers in polish finish to dress up the engine.
Click on image to view larger.
1931 Ford Model A
Johnnie installed these PML valve covers on his 1931 Ford Model A Coupe on 32 rails with a Chevy 327 engine. He let us know he "could not be happier with the quality".
original valve covers on 327 engine
PML valve covers, driver side
PML valve covers, passenger side
Click on image to view larger in a new tab or window.
Chevy with Edelbrock Performer RPM Intake
Braun's Motorsports in California installed these valve covers with an Edelbrock Performer RPM intake. The valve covers would not seat because they contacted the tooling points on the intake manifold. Braun's removed about 0.050 inch of material from the lip of the PML valve covers and then the valve covers nestled nicely between the intake and outake.
Restoring the Chevy
PML valve covers intalled with Edelbrock Performer RPM Intake Manifold
Exhaust manifold and PML valve covers
engine with PML valve covers installed
Click on image to view larger.
Will These Valve Covers Fit On Your Engine?
Engine configurations vary! Before ordering use our CHECKLIST.
We have a Loaner Program if you need a cover to test fit.
Gaskets
Gaskets are not included with these valve covers. PML designed these Chevy Small Block Perimeter Mount Valve Covers to work with cork composite gaskets.
Optional PCV, Breather, and Oil Fill Holes
PCV/breather/oil fill holes are optional. PML makes these valve covers without holes and can machine holes when needed for an engine configuration.
PML valve covers with optional PCV/breather holes.
Click on image to view larger.
Our approach to PCV and breather holes is unique so we made a PDF file with pictures and details: PML Specifications on Oil Fill, Breather and PCV (click to view) (a new window or tab will open with a PDF file).
If these PML valve covers are ordered with PCV, oil fill and breather holes, PML will machine one hole in each cover on the intake manifold side and include a PCV grommet, a push-in breather, and an oil fill tube.
Call if your engine configuration requires one hole or to discuss your requirements.
PML machines the valve covers to order in our shop. We use four or five different tools, shown in picture, on a CNC machine to create neat, leak-free holes. Spot facing provides a smooth sealing surface for grommets.
Videos of PML machining holes: PML machining a PCV hole and PML machining breather hole.
Compared to Die Casting
These images show this PML valve cover compared to a typical die casting, GM part 3726086. Many original valve covers were die castings or stamped steel. Both have a smooth surface.
Click on one of these small images to view larger.
PML valve covers are sand cast aluminum, so they have thicker walls, are taller, and have a rougher texture. Read more about finishes and construction of PML parts.
PML Valve Covers Compared to Stock
