Made in USA
Volume: 0.7 quarts over stock
Dimensions:
Click here for dimensions.
Number of bolts: 14 bolts
PML is making an extra capacity, heavy duty differential cover for Dana M275 differentials. Prototype parts available now. We welcome suggestions and pictures of trucks and configurations. Email us at [email protected] or call us 310-671-4345.
Benefits of PML Cover
- Open interior, shape similar to stock
- Extra capacity
- Drain hole and magnetic drain plug
- Finned to aid with heat dissipation
- Heavy duty, sand cast aluminum construction

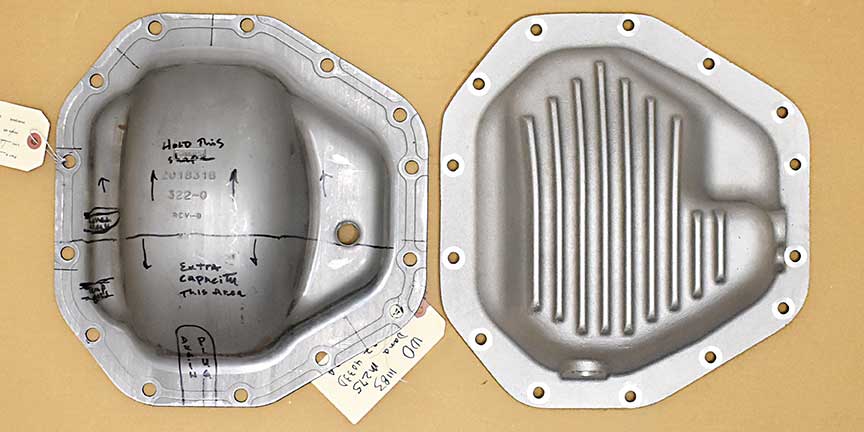

Ford OEM Stock Cover and PML M275 Cover
The stock cover is Ford part number LC3Z 4033 D which replaced part number HC3Z 4033 A according to Ford. The shape of the PML cover is similar to the OEM stock cover. This design deflects the differential fluid back on the gears for proper lubrication.
Pictures of stock cover, stock cover part number and stock cover next to PML cover. Click on image to view larger.
Mailing List Sign Up
Let us know if you are interested in a cover for this new differential.
PML would design this differential cover for 2016 and newer Ford trucks with the Dana M275 differential.
- 2017 and newer F350 SRW (Dana M275)
- 2017 and newer F250 with heavy duty rear option (Dana M275)
- Other vehicles with Dana M275 differentials
The Dana M275 is similar to the Dana M300 in shape, size and number of bolts.
Compare the picture below to your stock differential cover.
Check the area around the fill/level check hole. On the Dana M300, this area looks different.
PML makes a Dana M300 cover and it is Part Number 11158.
Dana M275 stock cover.
Click on image to view larger.
This differential cover has 14 bolts. If you have a 12 bolt differential cover, you probably have a Ford Sterling 10.25, 10.5 inch ring gear differential. See PML part number 9513 or PML part number 7086.
If you have a 16 bolt differential cover, see PML part number 11193.
No pictures of installations yet.

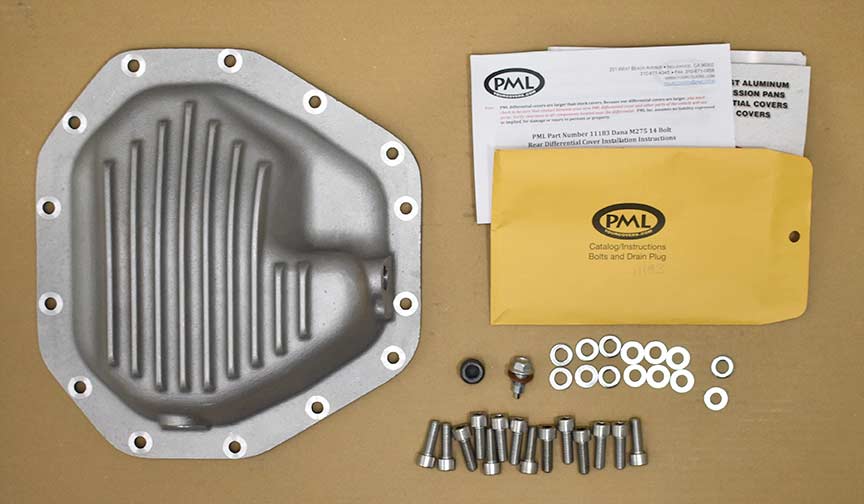

Included with PML Differential Cover
With each cover, PML includes new mounting bolts with washers, plug for fill/level check hole, and a magnetic drain plug.
Click on image to view larger.

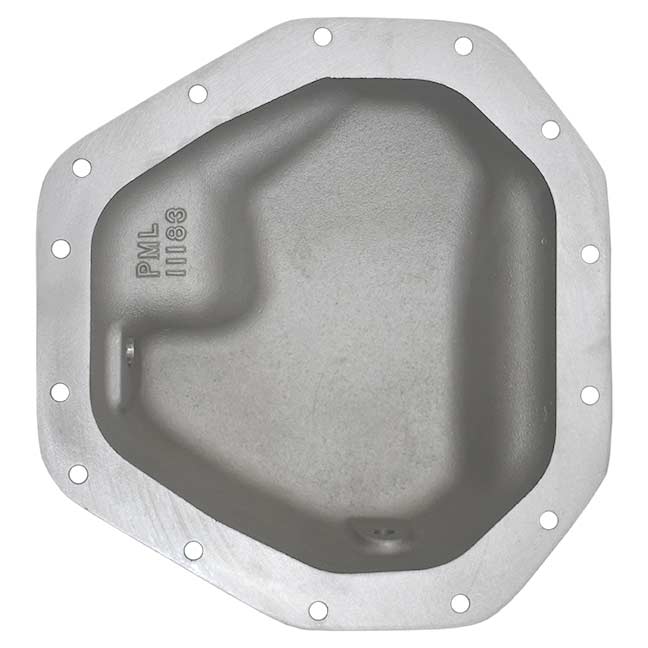

Inside of PML Differential Cover
This PML cover follows the same general shape as the stock cover with some extra capacity at the bottom and fins. Open interior is similar to stock cover.
Click on image to view larger.

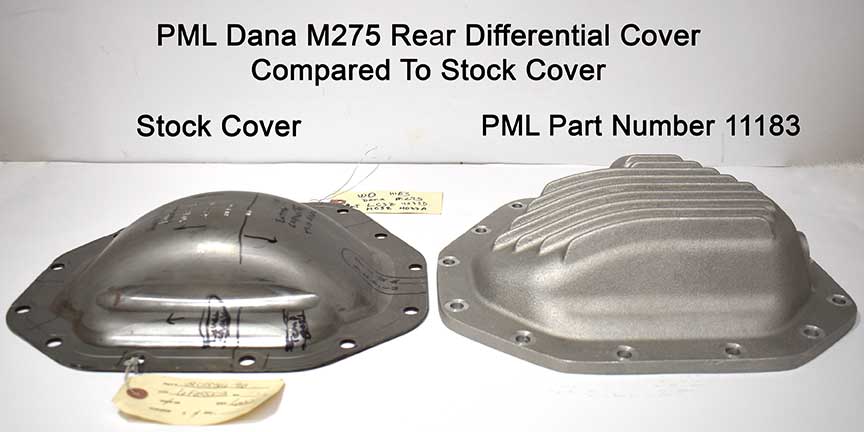

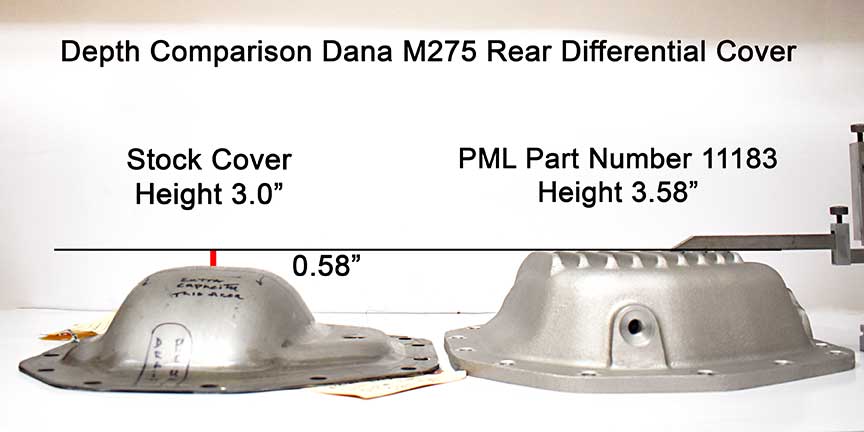

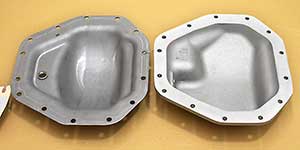

PML Differential Cover Compared to Stock
These images show this PML differential cover compared to the stock cover. The shape of the PML cover is similar to the OEM stock cover. This design deflects the differential fluid back on the gears for proper lubrication.
Click on image to view larger in a new tab or window.
