PML Toyota A760E, A760F Deep Transmission Pan

Description

Volume: 1 to 1 1/2 quarts over stock

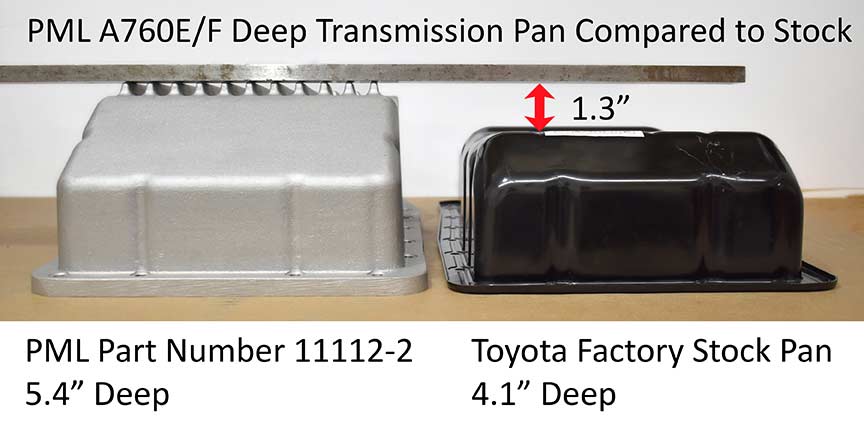

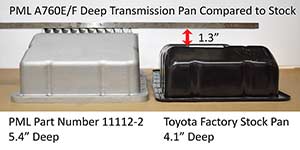

Dimensions: Click here for dimensions.

Number of Bolts: 20

Benefits:

Extra capacity
Heavy duty construction
Drain hole and magnetic drain plug included
Fins for cooling fluid
Thick gasket flange for a secure seal to the transmission housing

The PML pan works on both the A760E and the A760F. The stock transmission pan and filter are the same for both. The A760E is used on 2WD applications and the A760F is used on 4WD applications.

Applications

These vehicles may be able to use this PML pan as they usually have the Toyota A760E, A760F 6 speed transmission:

2010 to 2019 Tundra 4.6 V8
2010 to 2023 Lexus GX 460 4.6 V8
2010 to 2012 Sequoia 4.6 V8
Some international vehicles may also be able to use this pan

Configurations vary! Always check your vehicle to verify transmission and space available for a larger pan. PML cannot guarantee fitment and there is a restocking fee on returns.

A761 Transmissions: Contact us if you have the A761 transmission.

Installations

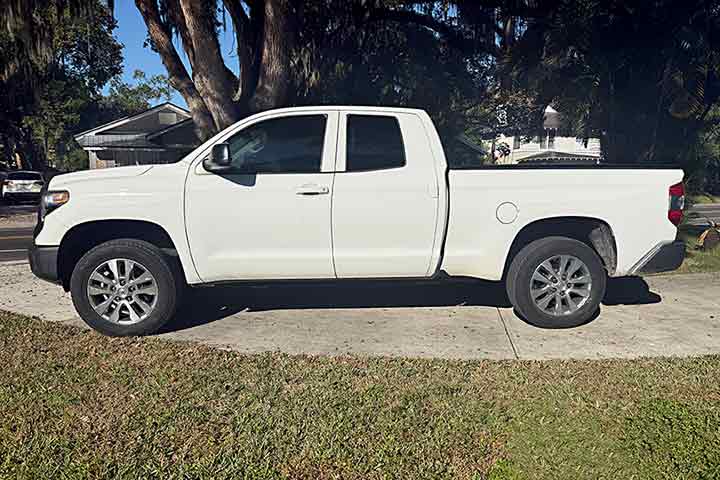

2019 Tundra

James installed this pan on his 2019 Tundra 4.6L V8 2WD truck. He reported to us that installation was straight forward and the PML pan looks good.

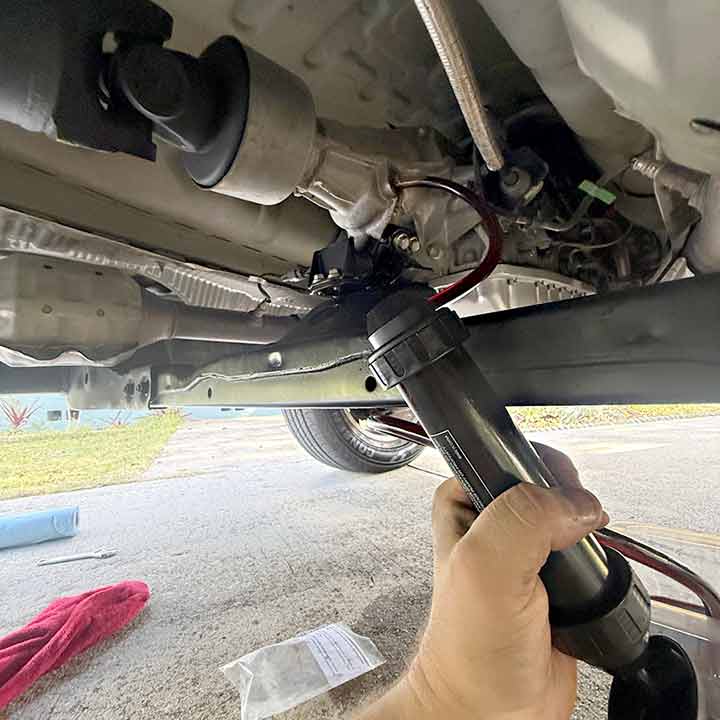

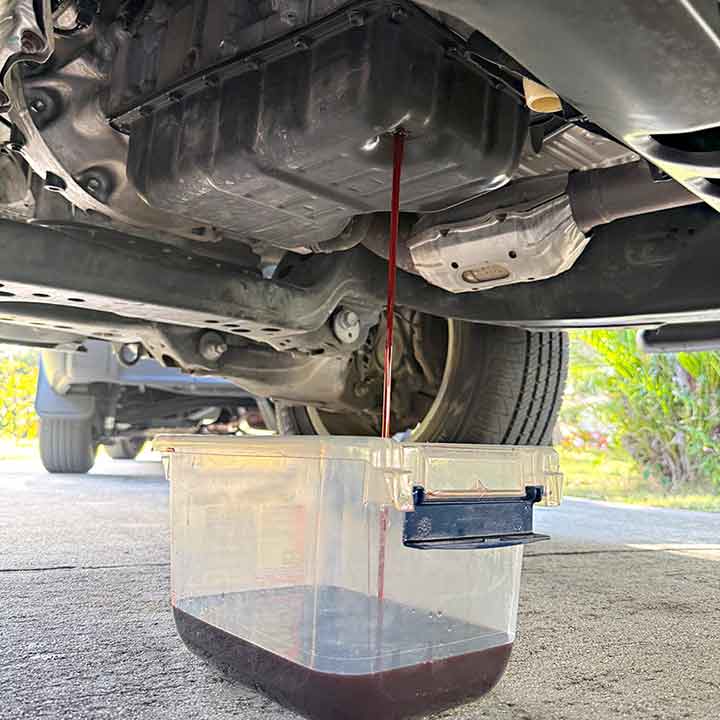

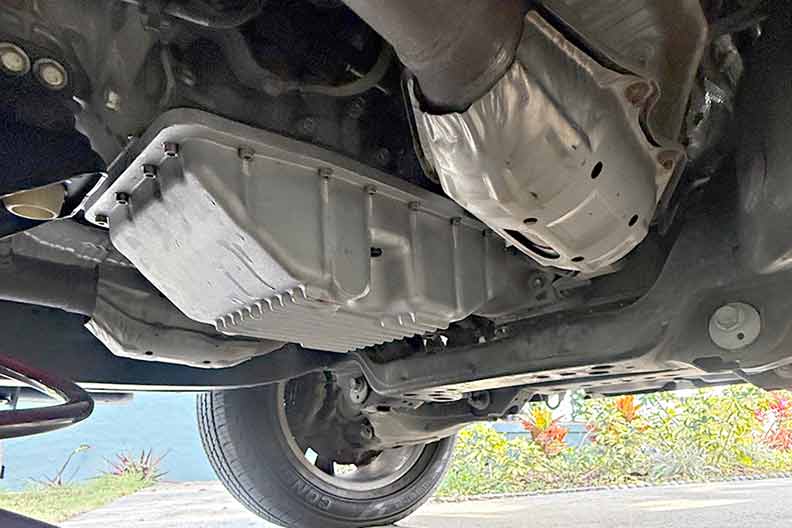

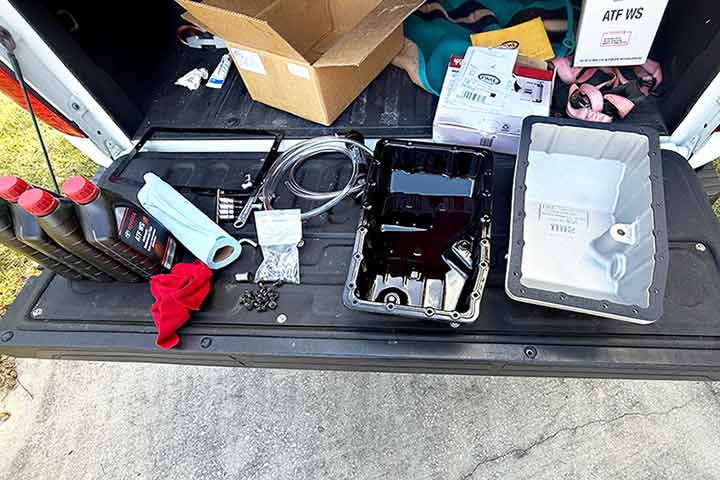

2019 Tundra with 4.6 V8 and A760 supplies draining stock pan pumping fluid into transmission PML A760 pan installed
Click on image to view larger in a new tab or window.

Specifications

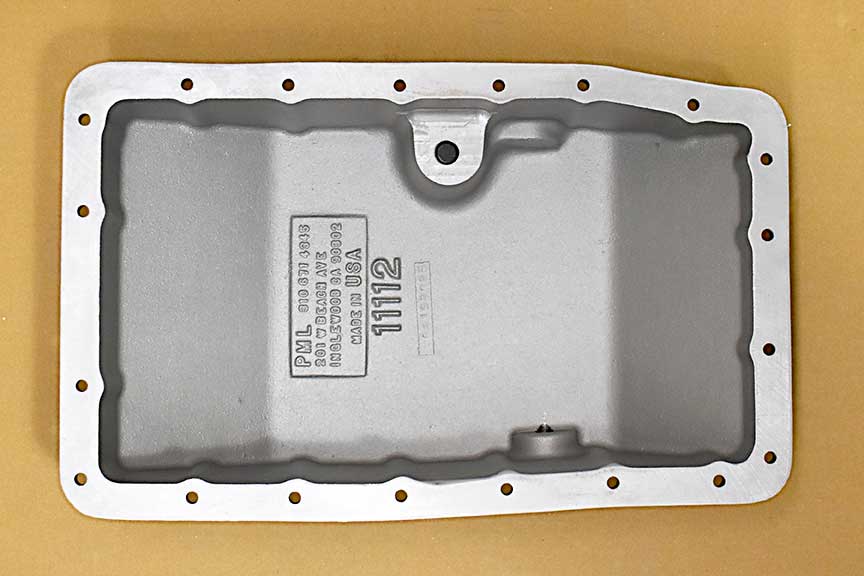

Inside of PML Transmission Pan

Click on image to view larger.

The level check hole is on the right/passenger side, which is the bottom of the picture. The drain is on the left/driver side.

Drain, Fill/Level Check, and Optional Machining For Temperature Sending Unit

Drain on PML A760 transmission pan Level check/fill on PML A760 transmission pan Location for optional 1/8 NPT machining on PML A760 pan
Click on image to view larger.

Drain: On left/driver side of pan at the bottom for complete draining.

Level Check/Fill: On the passenger/right side. On the PML pan, the level check hole is at the same location relative to the transmission as on the stock pan. There should be a fill hole on the main casing, no dip stick or fill tube, but the level check hole can also be used to fill.

1/8 NPT Option: Optionally PML can drill and tap a 1/8 NPT hole for a temperature sending unit. This would be for an aftermarket temperature gage. There is a custom machining charge. There is a boss (thick area) on the passenger side of the pan for this. Select the option before adding pan to cart. A plug for the hole is included. The standard size is 1/8 NPT. Check your aftermarket gage to verify the thread specifications for the sending unit before ordering. Call or email if you need a different size.
