CADILLAC® 368, 425, 472, 500, 1949 Script and Fins
    CADILLAC® 368, 425, 472, 500, 1949 Script and Fins
    Purchase CADILLAC® 368, 425, 472, 500, 1949 Script and Fins
    • CADILLAC® 368, 425, 472, 500, 1949 Script and Fins
      Part Number 11163

    • Price for set of 2 covers. Includes mounting bolts. For gaskets, see Gaskets for PML Cadillac 368, 425, 472, 500 Valve Covers. Price varies with finish.

      See Specifications for information about PCV, breather and oil fill holes. SEE PRODUCT INFO.

      $0.00

    • By clicking ADD TO CART, you confirm that you checked fitment and acknowledge PML valve covers Finish and Construction is different from OEM.



    Dimensions: Click here for dimensions.

    3.6 inches tall.

    Number of Bolts: 9 mounting bolts per cover, on the perimeter

    Finishes: Read about finishes and construction of PML parts.

    These valve covers feature the classic "1949" style CADILLAC script. The script gives an old school feeling to the more modern, powerful Cadillac V8 engines. Nine fins complement the script to complete the design.

    Benefits:

    • Classic design (GM licensed)
    • Script and fins are part of the casting and raised above the surface
    • Heavy duty sand cast aluminum construction for thick walls
    • Open interior to work with many roller rockers and stud girdles
    • Option for PCV, breather and oil fill holes
    • Gasket flange will not bend or flex when bolts are tightened for a leak–free seal
    • Mounting hardware provide with the covers
    • Made in USA

    Award Winning! At the 2018 SEMA show, these valve covers won a 2019 Global Media Award.
    SEMA Award   SEMA Award Presentation

    This script was common on engines with the 331, 365, 390 and 429 engines found in 1949 to 1967 models. For PML valve covers for those engines see PML Part Number 11073.

    PML added these valve covers to our product line for 368, 425, 472 and 500 Cadillac engines because of many customer requests.

    We have one set of these on special: SPECIAL 376.

       General Motors Trademarks are used under license to PML, Inc.

    These are heavy duty valve covers for Cadillac 368, 425, 472 & 500 engines.

    These valve covers were designed to fit the iron cylinder heads. Modification may be needed for some aluminum heads and roller rockers.

    Example of iron cylinder head:

    Cadillc iron cylinder head  Click on image to view larger.

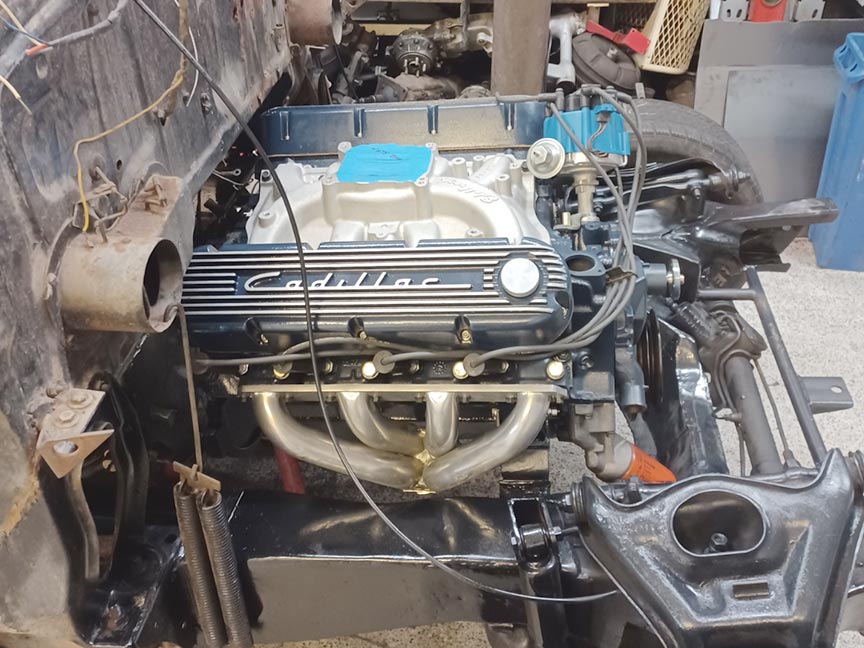

    Our thanks to those who have emailed pictures of our valve covers on their engines.

    1960 Cadillac Coupe Deville

    We spotted this 1960 Cadillac Coupe Deville at the Grand National Roadster Show 2020. This Cadillac is owned by Dan Kruse and the builders are Veazie Brothers, Chino, California.

    1960 Cadillac Coupe de Ville 1960 Cadillac Coupe de Ville   Info for restored 1960 Cadillac Coupe de Ville Sign at the show   1960 Cadillac Coupe de Ville, passenger side of engine Passenger side of engine, 1960 Cadillac Coupe de Ville   1960 Cadillac Coupe de Ville, driver side of engine Driver side of engine, 1960 Cadillac Coupe de Ville
    Click on image to view larger in a new tab or window.

    1956 Studebaker Hawk Hardtop, 472 Cadillac Engine

    Jim purchased these PML valve covers in the cast finish and powder coated them locally to get the exact color for the old-school look.

    1956 Studebaker with PML valve covers for Cadillac 472, 500 engine 1956 Studebaker, Cadillac 472 engine, PML valve covers   Passenger side of engine, 1956 Studebaker Passenger side of Cadillac 472 engine in a 1956 Studebaker   1956 Studebaker Hawk Hardtop 1956 Studebaker Hawk Hardtop
    Click on image to view larger in a new tab or window.

    1944 Coupe

    Bill put these PML valve covers on his 1944 Coupe.

    PML valve covers with 1949 script on a Coupe 1944 Coupe with PML Cadillac valve covers, driver side   PML valve covers with 1949 script on a Coupe, passenger side 1944 Coupe with PML Cadillac valve covers, passenger side
    Click on image to view larger.

    Finishes

    These valve covers are sand castings. So they have the texture of sand. This texture usually is visible through the powder coat or paint, similar to an orange peel look and feel.

    When the valve covers are powder coated, the top of the fins and script are brushed so the design stands out.

    When polished, the area between the fins and script is not polished to provide contrast and highlight the design.

    Read here for more information about finishes and construction of PML parts.

    Gaskets

    Uses stock gaskets (not included). We recommend cork or cork composite gaskets.

    PML sells cork composite gaskets for these valve covers which can be ordered over the phone.

    Inside of Valve Covers

    Inside of PML Cadillac valve covers with 1949 script
    Click on image to view larger in a new tab or window.

    These valve covers have an open interior so that there is clearance for many roller rocker systems.

    The donut shapes on the inside add thickness so this area can be machined for PCV, oil fill caps or breathers.

    PCV, Breather and Oil Fill Holes

    PCV, breather, and oil fill holes are optional. Details:

    • PML machines holes to order
    • This is custom machining and carries an additional fee, custom machined orders are not returnable
    • Holes can be machined on the top in the finned area or in the middle of the intake manifold side
    • Holes machined on top over covers remove some fin area but do NOT interfer with the CADILLAC script
    • On the inside, the circular bosses, which look like rings or donuts, indicate locations where holes can be machined on the top
    • Only holes on top can be threaded for an oil cap
    • A billet oil cap is available
    • Machining must be ordered over the phone

    If there is a PCV or breather hole, a separate oil fill hole is not needed. Oil can be added by temporarily removing the breather or PCV valve.

    PML Cadillac 500 valve covers with hole for breather or PCV   PML Cadillac 500 valve covers with breather grommet in hole

    PML Cadillac 500 valve covers with hole PCV and grommet in hole   PML Cadillac 500 valve covers with hole for breather and grommet   PML Cadillac 500 valve covers with hole on intake manifold side   PML Cadillac 500 valve covers with hole for breather and grommet
    Click on image to view larger in a new tab or window.

    Images show:

    1. Hole on top for PCV or breather. On the driver/left side this hole would be toward the front. On the passenger side this hole would be toward the rear/firewall.
    2. Hole on top, breather grommet in hole. On the driver/left side this hole would be toward the front. On the passenger/right side this hole would be toward the rear/firewall.
    3. Hole on top, PCV grommet in hole. On the driver/left side this hole would be toward the rear/firewall. On the passenger/right side this hole would be toward the front.
    4. Hole on top for PCV or breather, view of inside.
    5. Hole on intake manifold side of cover for PCV or breather.
    6. Hole on top machined and threaded, billet oil cap in hole. On the driver/left side this hole would be toward the rear/firewall. On the passenger/right side this hole would be toward the front.

    See this PDF file for more info. File will open in a new tab or window. May take a minute.
