Volume: 0.75 quarts over 2005 stock cover
Dimensions:
Click here for dimensions.
It is 1 1/4 inches deeper than the stock 2005 & newer cover, 2 inches deeper than the stock 2004 cover.
Number of Bolts: 12
PML designed this differential cover as a bolt on replacement cover for Nissan Titan trucks. This cover is compatible with the brake clip and bracket and has a fill/level check hole at the same height as on the stock cover for an accurate fluid level.
Benefits
- Extra capacity
- Sand-cast aluminum, heavy duty construction for strength
- Thick gasket flange for a secure seal
- Oversized fins for cooling
- Works with stock brake line clip and bracket (2005 and later) that attach to the differential cover
- Bolt-on replacement
- 1/8 NPT hole, plug included
- 2004 to 2014/2015 Nissan Titan
Always check your vehicle to verify differential and clearance.
2004 Titan: 2004 Titan trucks need the emergency brake cable bracket (Nissan part number 36522-8S10A) and the brake line clip (Nissan part number 24211-8S10A) from the 2005 Titan.
Does Not Fit Frontier. The same differential is found on 2005 & newer Frontier but this cover will not work. The fins will contact the spare tire on any down travel and the emergency brake line would require modification. We appreciate all the feedback from Frontier owners.
2012 Titan Pro-4X
Sheldon purchased this PML cover for his 2012 Nissan Titan Prox-4X. Our thanks to Sheldon for sending us pictures of his installation. Sheldon also purchased a PML transmission pan, part number 11037, for his Titan.
Click on image to view larger.
2011 Titan Pro-4x
Eric installed this PML differential cover on his 2011 Nissan Titan Prox-4X. Our thanks to Nick for his post on Facebook about his installation.
2006 Titan V8
Matthew installed a Hellwig sway bar, this PML differential cover and a PML transmission pan on his 2006 Titan. He tows and wanted to keep his fluids cool and clean to maintain his differential and transmission.
Click on image to view larger.
2005 Titan
2005 Titan
Stock differential cover
PML differential cover installation on 2005 Titan
PML cover installed
Click on image to view larger in a new tab or window.
2004 Titan Owners Need Clip and Bracket
Click on image to view larger.
2004 Titan owners will need the emergency brake cable bracket (Nissan part number 36522-8S10A) and the brake line clip (Nissan part number 24211-8S10A) from the 2005 Titan.
Our thanks to Antonio who sent us pictures of his installation on his 2004 Titan. He painted the as-cast cover primer black for a custom look.
Temperature Sensor Port

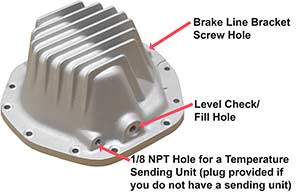

The cover has a 1/8 NPT port already machined for a temperature sending unit. A plug is included if an aftermarket temperature sensor is not used. The hole is located on the side of the cover, in the small boss 2/3 of the way down, at the 4 o clock position.
Level Check and Fill

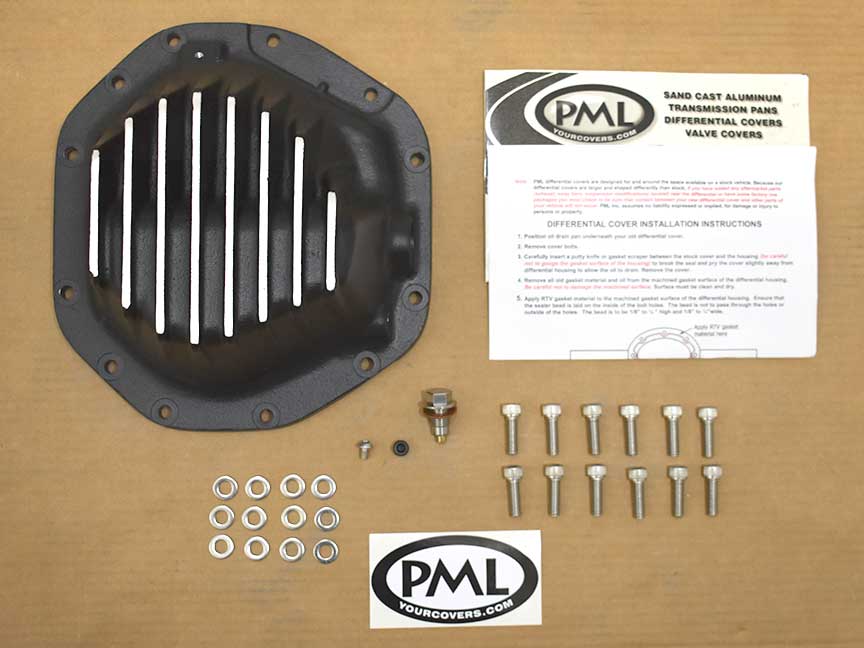

The cover has a level check/fill hole on the side at the 3 oclock position. The cover does not have a drain hole because Nissan provides a drain in the differential housing. A new set of mounting bolts is included and a magnetic plug is provided for the level check/fill hole.
The level check hole is located on the side of the cover for easy access when a sway bar is used.
PML Cover with Helwig Sway Bar
Click on image to view larger.
This cover will work with the Hellwig Titan sway bar (part #7669). In July 2006, Hellwig revised the design of this sway bar to allow more room for the differential cover.
Image shows this PML cover and Hellwig sway bar on a Titan.
PML Differential Cover Compared to Stock
These pictures compare the PML cover to the stock covers. The stock cover for 2004 is the one on the right in the pictures and it does not have any fins. The finned stock cover is for 2005 to 2014/2015 Titans.

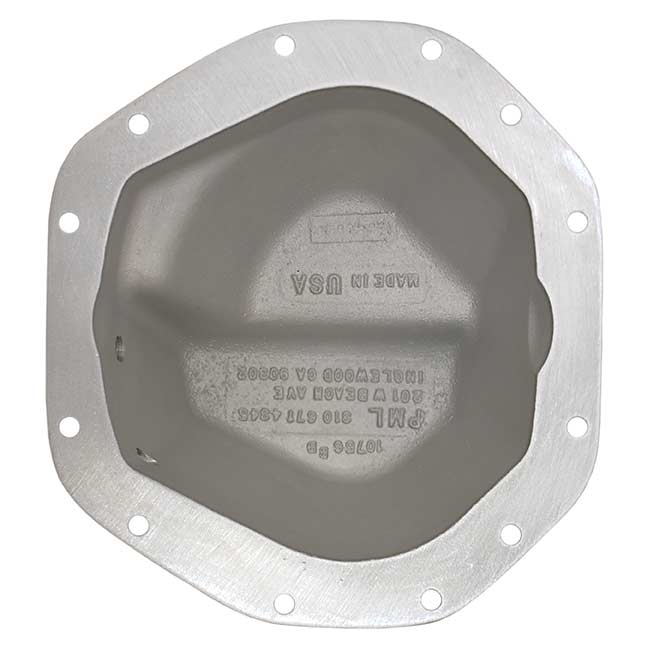

The first picture compares the depths, the second picture compares the outsides, and the third picture is of the insides.
