GM Turbo 350 Deep
    GM Turbo 350 Deep
    Purchase GM Turbo 350 Deep
    • GM Turbo 350 Deep
      Part Number 9684

    • Pan includes magnetic drain plug and mounting hardware.
      Price varies with finish. SEE PRODUCT INFO.

      $0.00

    • OPTIONAL: add machining of a 1/8 NPT hole for an aftermarket temperature sending unit:
    •

    Volume: 2 quarts over stock

    Dimensions: Click here for dimensions.

    Number of Bolts: 13

    PML designed this extra capacity transmission pan for the GM TH350 (Turbo–Hydramatic 350) transmission.

    Benefits:

    • Extra capacity
    • Drain hole and magnetic drain plug for easy fluid changes
    • Finned for cooling
    • Heavy duty sand cast aluminum construction
    • Machined flat gasket sealing surface
    • Can optionally be machined for a temperture sending unit

    PML also makes a stock capacity version of this pan for vehicles that need more ground clearance. The stock capacity TH350 pan, PML part number 9589, has the external bosses that may interfere with the drive shaft on some vehicles.

    We have one of these on SPECIAL.

    TheTH350 transmission was first available in 1969 after joint development by Buick and Chevrolet. It continued in production in the 1980s. The TH350 transmission is called Turbo 350 in the racing field and is formally called THM350 for Turbo–Hydra–matic 350.

    The TH350 transmission is found in GM (Chevy, Cadillac, Olds, Buick) vehicles as well as retrofitted Jeeps and other cars and trucks. For example, this transmission was originally on 1967 to 1972 El Caminos, Blazers, and C/K 20 trucks and Suburbans.

    4WD Vehicles: Check for space between drain plug and drive shaft. If the draft shaft will be close to the side of the pan, it could hit the head of the drain plug. PML can drill and tap the other side of the pan to avoid this. Contact us for ordering information with this option.

    Installation on a 1949 Studebaker Pickup

    Rick installed this PML transmission pan on his 1949 Studebaker Pick Up he is building. He is not quite done yet but the transmission is ready to go.

    PML TH350 pan on 1949 Studebaker pick up 1949 Studebaker pick up restoration in process, PML TH350 deep transmission pan installed   Side view of PML TH350 pan on 1949 Studebaker Side view of PML TH350 deep transmission pan installed   GM TH350 on 1949 Studebaker GM TH350 transmission with PML deep pan, restoration in process on 1949 Studebaker
    Click on image to view larger.

    Drain

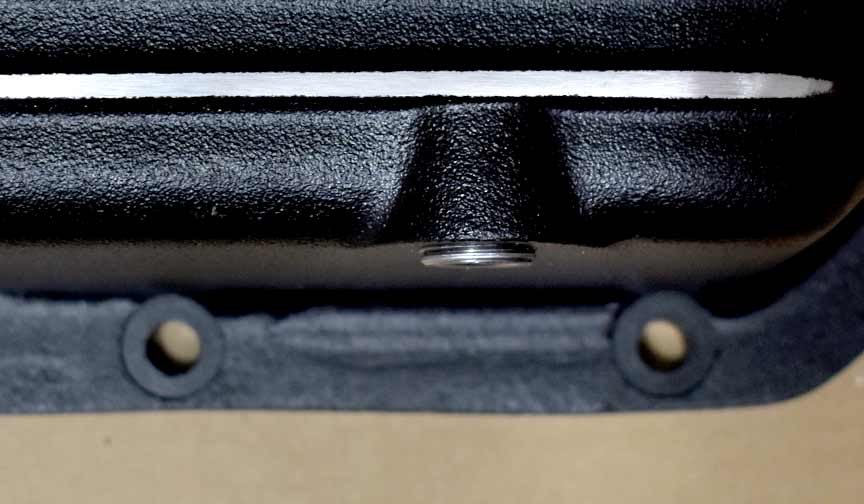

    The drain hole is on the passenger side of the PML transmission pan. A magnetic drain plug is included with the pan.

    Check for drive shaft clearance. The head of the drain plug sticks out about 5/16ths inch. On some 4WD vehicles, the drive shaft runs close to the edge of pan. If needed PML can move the drain to the other side of the pan. Contact us for ordering this option.

    Filter

    This PML pan works with the stock filter.

    The filter bolts on to the valve body so no filter supports or extensions are needed.

    Gasket

    PML recommends a cork or cork composite gasket with this transmission pan. There are many available. For example, this cork/rubber composite gasket is Mahle Part Number 39348 and was purchased on Amazon.

    Turbo 350 cork composite gasket   Mahle Turbo 350 gasket info
    Click on image to view larger.

    Optional Temperature Sending Unit Machining

    Optionally, PML can drill and tap a 1/8 NPT hole for a temperature sending unit. This would be for an aftermarket temperature gage. There is a custom machining charge.

    There are two possible locations on this pan. There is a boss (thick area) on both the driver and the passenger sides of the pan for this.

    Select the option before adding pan to cart. A plug for the hole is included.

    The standard size is 1/8 NPT. Check your aftermarket gage to verify the thread specifications for the sending unit before ordering. Call or email if you need a different size.

    Included with PML Transmission Pan

    PML includes a magentic drain plug and new mounting bolts with each pan.

    Hardware included with PML Turbo 350 Deep transmission pan, cast finish   Hardware included with PML Turbo 350 Deep transmission pan, black powder coat finish  Click on image to view larger.

    Revisions

    In 2014, PML moved the drain plug and bosses for an optional temperature sending unit. These were on the outside of pan and are now on the inside. The external bosses interfered with the drive shaft on some vehicles. The polish finish pan still has the bosses on the outside of the pan.

    Check for drive shaft clearance, especially on 4WD vehicles. The head of the drain plug sticks out about 5/16ths inch. On some 4WD vehicles, the drive shaft runs very close to the edge of pan. If needed PML can move the drain to the other side of the pan. Contact us for ordering this option.

    PML Transmission Pan Compared to Stock

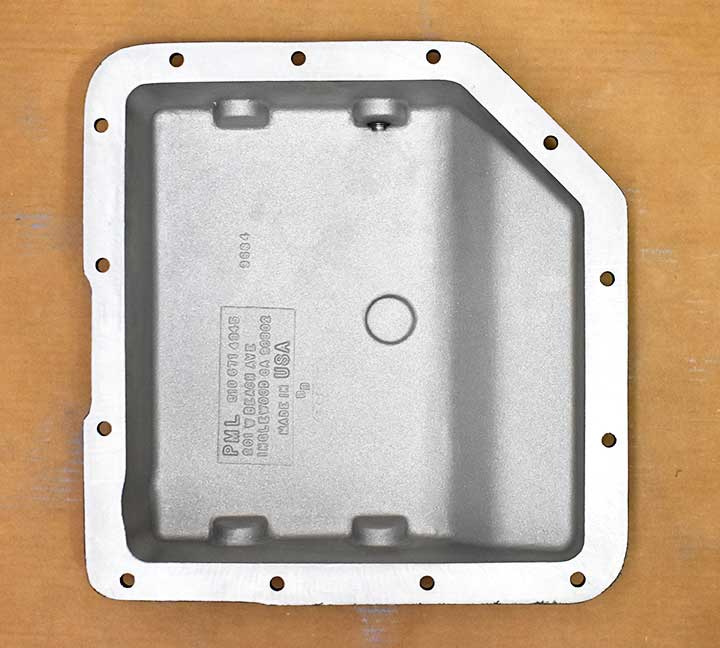

    PML Transmission Pan Part Numbers 9589 and 9684 compared to stock   PML Transmission Pan Part Number 9684, compared to stock, top view
    Click on image to view larger in a new tab or window.
