GM 6L90, 6L90E Deep
    GM 6L90, 6L90E Deep
    Purchase GM 6L90, 6L90E Deep
    • GM 6L90, 6L90E Deep
      Part Number 11036

    • For GMC and Chevrolet 3/4 ton trucks, SUVs, and vans. Pan includes magnetic drain plug and mounting hardware. Price varies with finish.

      Level check hole at rear for some 2019 and newer trucks and SUVs that do not have a dipstick and use a hole on the pan to check the fluid level. Plug for hole included.

      SEE PRODUCT INFO.

      $0.00

    • OPTIONAL: add machining of a 1/8 NPT hole for an aftermarket temperature sending unit:
    •

    Volume: 2 1/2 to 3 quarts over stock

    Dimensions: Click here for dimensions.

    Number of Bolts: 18 (there are 20 holes, 2 holes locate the gasket and 18 holes for bolts to hold the pan to the transmission case)

    PML designed this 6L90 transmission pan for 2007 to 2021 3/4 ton GM heavy duty gas engine trucks, SUVs and vans such as Chevy Silverado 2500HD and GMC Sierra 2500HD.

    Benefits:

    • Extra capacity, fins and aluminum construction to dissipate heat from transmission fluid
    • Drain plug for easier maintenance
    • Thick walls to add strength to the transmission housing
    • Thick gasket flange, machined flat, for a leak-free seal
    • Step in the back to clear exhaust

    The truck stock pan is about 3 1/2 inches deep so the PML pan is about 3 inches deeper than the stock pan.

    For a heavy duty pan closer to stock depth, see PML 6L90 Stock Capacity Transmission Pan.

    The 6L80 transmission pan is similar in shape but the 6L80 is shorter at 17 1/2 inches.

    This pan fits the GM 6L90, 6L90E transmission, typically found on these vehicles:

    • Silverado 2500 and 3500 HD with 6.0L or 6.6L gas engine, 2007 to 2022 (2020 and later models may have Allison 10 speed)
    • Sierra 2500 and 3500 HD with 6.0L or 6.6L gas engine, 2007 to 2022 (2020 and later models may have Allison 10 speed)

    • Suburban 2500, 6.0L, 2008 to 2013

    • Express Van 2500 and 3500, 4.8L, 6.0L, and 6.6L Diesel, 2010 to 2022 (2018 and later models may have 8 or 10 speed)
    • Savana Van 2500 and 3500, 4.8L, 6.0L, and 6.6L Diesel, 2010 to 2022 (2018 and later models may have 8 or 10 speed)

    Note: Trucks and SUVs have a variety of configurations. Look at yours before you order to verify your transmission and clearance. Vans especially should check for clearance. Some Tahoe and Yukon HD 6.0L, not hybrid, may also have this transmission but most have 6L80 or a 10 speed 10L80.

    Stock capacity 6L90 pan with Level Check Hole: Cadillac CTS-V and Camaro ZL1, some vans and trucks with skid plates may need a pan closer to stock depth. See PML 6L90 stock capacity pan, which offers more ground clearance than this deep pan: PML Stock Capacity 6L90 Transmission Pan With Level Check.

    Installation: In many cases, you will need to drop the exhaust to install this pan. You would need to drop the exhaust to service the transmission with the stock pan as three bolts are not otherwise accessible. See installation images below that show the routing of the exhaust.

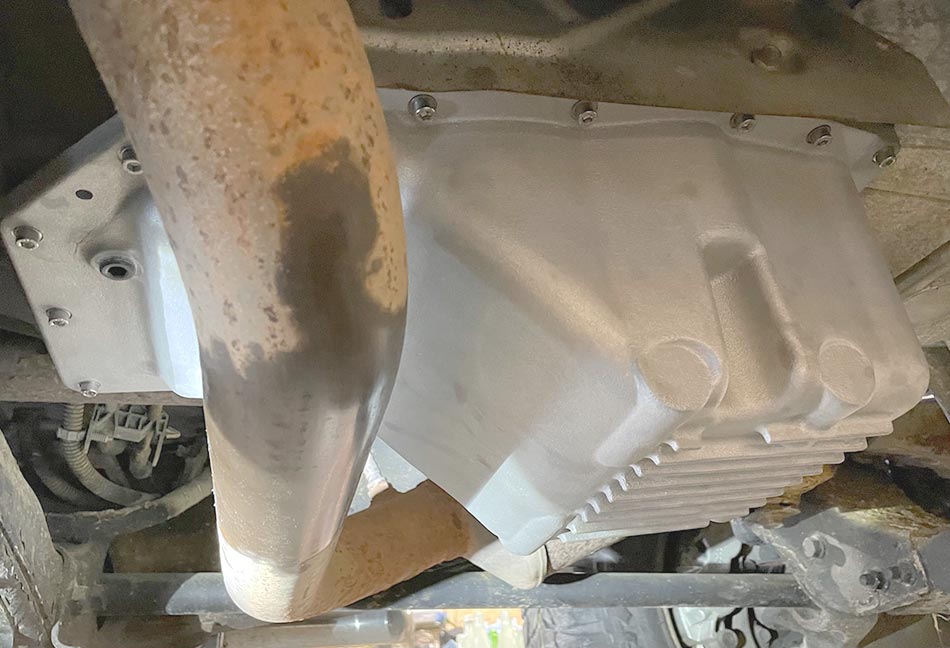

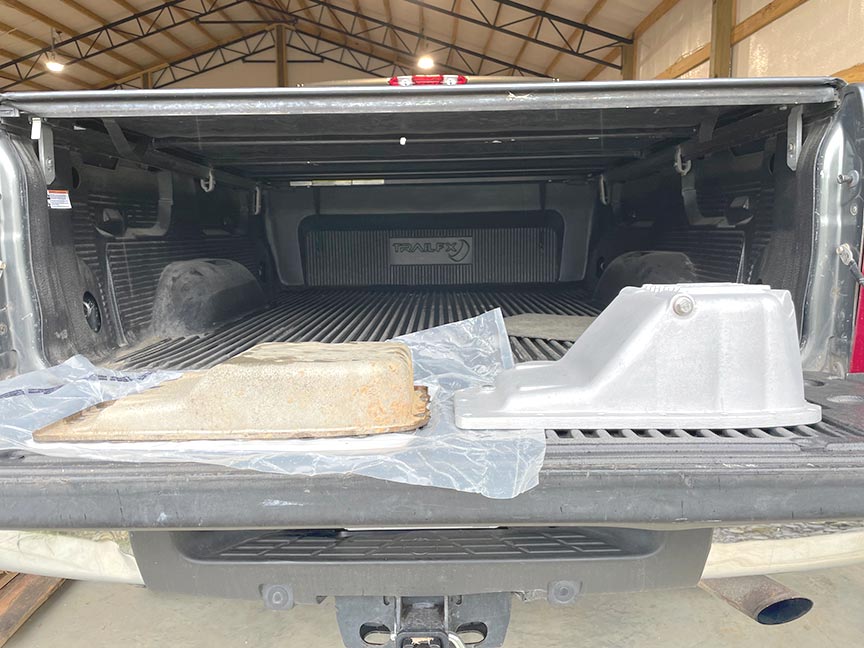

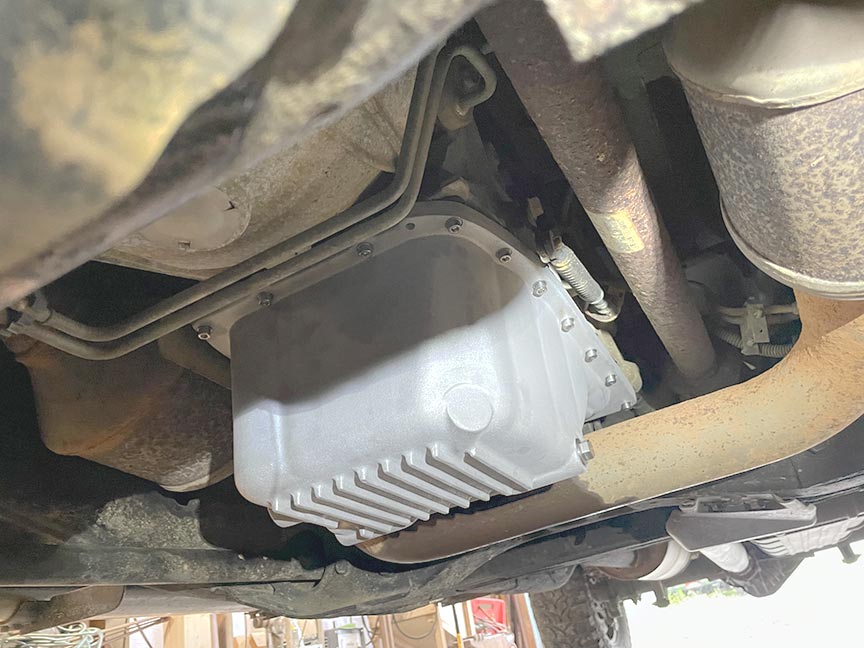

    Our thanks to those who have emailed us pictures of their installations.

    • 2018 Chevy Express 3500 6L90

    • 2017 Silverado 2500HD 6.0L Denali
    • 2015 Silverado 2500HD 6.0L
    • 2015 Silverado 2500HD 6.0L
    • 2011 Silverado 2500HD 6.0L
    • 2010 Silverado 2500HD 6.0L

    • 2012 Suburban 2500

    • 2010 Sierra 2500HD 6.0L
    • 2009 Sierra 2500HD 6.0L
    • 2008 Sierra 2500HD 6.0L 4WD

    • 2010 GMC Box Truck

    2018 Chevy Express 3500 6L90

    Mark installed this PML transmission pan on his 2018 Chevy Express 3500 6L90.

    2018 Chevy Express 3500 6L90 2018 Chevy Express 3500 6L90   2018 Chevy Express 3500 6L90 with stock transmission pan Stock Pan   2018 Chevy Express 3500 6L90 with PML transmission pan installed PML pan   2018 Chevy Express 3500 6L90 with PML transmission pan installed pan drain PML pan drain
    Click on image to view larger in a new tab or window.

    2017 Silverado 2500HD 6.0L Denali

    Richie's Truck & Auto in Hicksville, New York installed this PML pan on Scott's 2500HD. Scott let us know that the pan is custom power coated Illusion Cherry and the pan has dropped his temperatures by almost 35 degrees.

    2017 Chevy Silverado 2500HD Denali, side view  2017 Chevy Silverado 2500HD Denali   PML 6L90 transmission pan on a 2017 Chevy Silverado 2500HD Denali, custom powder coat
    Click on image to view larger.

    2015 Silverado 2500HD 6.0L

    Ray reported that removing the old pan was very easy and installing the PML pan was a "breeze". It slipped by the exhaust, close but right on. He loves the look and fit and being able to change the transmission fluid when needed.

    2015 2500HD truck 2015 2500hd 6.0L   2015 2500HD stock transmission pan 2015 2500HD stock 6L90 transmission pan   2015 2500HD 6.0L PML transmission pan installed 2015 2500hd PML 6L90 transmission pan installed   Passenger side view of PML transmission pan on 2015 Chevy 2500HD Passenger side view of PML 6L90 transmission pan on a 2015 Chevy 2500 HD
    Click on image to view larger in a new tab or window.

    2015 Silverado 2500HD 6.0L

    George installed this PML transmission pan on his 2015 2500HD 6.0L truck. Our thanks to George for the pictures.

    2015 Chevy Silverado 2500HD with a PML GM 6L90 transmission pan    2015 Chevy Silverado 2500 stock transmission pan    2015 Chevy Silverado 2500HD
    Click on image to view larger.

    2011 Silverado 2500HD 6.0L

    Jim installed this PML transmission pan on his 2011 Chevy Silverado 2500 6.0 4WD with an aftermarket exhaust y-pipe. He reported that the install was fairly straightforward, with very close clearance for the stock pan removal and PML pan install because of the y-pipe. He removed the shield, to the right of the pan and mounts onto the transmission itself, to install the PML pan. Removing this shield gave him more clearance to come in from the side and slide the pan in.

    Jim noted that ground clearance with the PML pan is not affected at all. It is above the front cross member and above the torsion bars (from the side).

    Our thanks to Jim for his pictures and feedback. These images show, from left to right: 2011 Silverado, view from passenger's side of PML pan installed, view from rear of truck showing clearance with PML pan installed

    Chevy Silverado 2500 with a PML GM 6L90 transmission pan, deep    PML GM 6L90 transmission pan, deep, passenger side view of installation    PML GM 6L90 transmission pan, deep, view from rear of Silverado 2500
    Click on image to view larger.

    2010 Silverado 2500HD 6.0L

    2010 Chevy Silverado 2500HD with a PML GM 6L90 transmission pan, deep

    Jason installed this PML transmission pan on his 2010 Chevy Silverado 2500HD 6.0. This picture shows the PML pan installed and the stock pan sitting on the ground.

    Jason reported temperature drops from 160–190 to 148–178 when towing a 6,700 pound trailer. He also sees lower temperatures during his daily drive. Read Jason's review of our pan here, in this PDF file.

    Click on image to view larger.

    2012 Suburban 2500

    Frank installed this PML transmission pan on his 2012 Suburban 2500. He included a few notes on the installation process:

    • The frame has cutouts for the rear bolts
    • Put on gasket first
    • Rail near solenoids
    • Wiggle pan carefully at an angle over the solenoids
    • Did not drop exhaust

    2012 Suburban 2500 4x4 2012 Suburban 2500 4x4   2012 Suburban 2500 4x4 with PML transmission pan PML Pan
    Click on image to view larger in a new tab or window.

    2010 Sierra 2500HD 6.0L

    Leon installed this PML pan on his 2010 GMC Sierra 2500HD L96. He liked that the pan is "solid".

    2010 GMC Sierra 2500HD L96 2010 Sierra 2500HD   Stock transmission pan 2010 Sierra 2500HD Stock transmission pan   6L90 stock transmission pan compared to PML pan PML and stock pan   PML 6L90 pan on 2010 Sierra 2500HD PML pan installed on 2010 Sierra 2500HD
    Click on image to view larger in a new tab or window.

    2009 Sierra 2500HD 6.0L

    Chris installed this pan on his 2009 GMC Sierra 2500 6.0 truck.

    2009 Sierra 3500 gas engine, 6L90 trans 2009 GMC 3500 6.0l gas engine truck, 6L90 transmission.   2009 Sierra 3500 stock trans pan 2009 GMC 3500 stock tranny pan, 6L90 transmission.   6L90 trans pml pan, stock filter, stock gasket, stock pan GM 6L90 transmission pan from PML, stock filter and gasket, and stock pan.   PML 6L90 trans pan installed on 2009 GMC 3500 GM 6L90 transmission pan from PML installed on GMC Sierra 3500 6.0l gas engine truck.
    Click on image to view larger.

    2008 Sierra 2500HD 6.0L 4WD

    John installed this PML transmission pan on his 2008 Sierra. He also installed PML differential cover Part Number 6060.

    2008 Sierra 2500HD 4WD 2008 Sierra 2500HD 4WD   2008 Sierra 2500HD 4WD with PML transmission pan installed PML Pan   2008 Sierra 2500HD 4WD stock pan versus PML transmission pan Stock Pan and PML Pan   2008 Sierra 2500HD 4WD transmission pan bolts Transmission Pan bolts   2008 Sierra 2500HD 4WD with PML differential cover installed PML Differential Cover
    Click on image to view larger in a new tab or window.

    2010 GMC Box Truck

    GMC Box Truck G33503 getting ready for a PML GM 6L90 transmission pan installation

    Paul installed a PML 6L90 pan on his 2010 GMC G33503 Box Truck. He documented his installation with pictures in this PDF file: PML 6L90 Transmission Pan Installation

    Our thanks to Paul for his great write-up. Paul used a mini vice grip to access bolts above the exhaust. Another suggestion for difficult to access bolts would be to cut down an allen wrench to fit.

    Filter and Gasket Information

    PML 6L90 transmission pan, filter supports  Inside of the PML 6L90 deep transmission pan, click on image to view larger

    PML designed this transmission pan to work with OEM/stock filters and gaskets.

    The OEM gasket from the factory can be reused if clean and free of any holes or nicks which can cause leaks.

    Because the pan is deeper than stock, the pan has filter supports cast in. A deeper filter or extension is not needed since the transmission fluid is at the same level with a PML pan as with the stock pan.

    6L90 transmission filters  GM/AC Delco 6L90 filters, click on image to view larger


    Level Check Hole

    PML 6L90 transmission pan, level check/fill hole machined   PML 6L90 transmission pan, passenger side, plug in level check/fill hole   PML 6L90 transmission pan, plug in level check/fill hole
    Pictures show (from left to right): PML 6L90 pan without level check hole, pan with hole, pan with plug in hole, close up of level check on PML pan. Click on image to view larger

    Some cars and 2019 and newer trucks, have a stock pan with the level check on the pan. These vehicles may not have a dipstick. This PML pan is compatible with those applications. If your vehicle does not need a level check on the pan, then simply plug the hole (plug supplied) and forget about it.

    Originally, PML did not make this pan with a level check hole as trucks and SUVs all had dipsticks until around 2019. PML updated the pan to include the level check hole and plug.
    PML 6L90 transmission pan, level check/fill hole machined  Picture of PML pan without level check. Click on image to view larger.

    Machining for Temperature Sensors

    PML 6L90 transmission pan, optional 1/8 npt machining locations  Locations for optional temp sending unit machining, click on image to view larger

    Three bosses are provided that can be machined for use with aftermarket sensors and gages. 1/8 NPT is the default, standard size. Contact PML for other sizes other than 1/8 NPT. The bosses can also be used as alternate drain plug locations.

    If you would like PML to drill and tap a boss, select the option in the shopping cart or call to order. A plug for the hole is included.

    Drain Hole

    PML 6L90 transmission pan drain on side  Click on image to view larger.

    The drain is on the driver or left side. A magnetic drain plug comes with the pan.

    Included in Package

    PML 6L90 transmission pan with fill/level check hole includes bolts, plug and magnetic drain plug  Click on image to view larger.

    This pan ships with a magnetic drain plug, level check/fill hole plug, and mounting bolts.

    PML 6L90 Transmission Pans and GM Stock Pans Compared

    6L90 stock pans   6L90 stock pans inside
    Click on image to view larger.

    The 6L90 transmission has two stock pans that we know of. In this picture:

    • OEM part number 24226851 is on the left. It does not have a level check tube and is commonly found on 2007 to 2019 trucks, SUVs, and vans. Some newer vehicles also have this pan.
    • OEM part number 24248164 is on the right. It has a level check tube. OEM part number 24248164 supersedes several other parts numbers for the same pan. It is commonly found on cars and some 2019 and newer trucks, SUVs and vans.

    This PML extra capacity pan compared to stock pans:

    6L90 stock pans and PML pan, top view  Click on image to view larger.

    These pictures show both PML 6L90 transmission pans compared to the stock pans. First image compares the heights of the pans and the second image shows the insides.

    6L90 PML and stock pans   6L90 PML and stock pans
    Click on image to view larger.
