PML Chrysler Dodge 68RFE, 66RFE, 65RFE, 545RFE, 45RFE Stock Capacity Transmission Pan

Description

Volume: Stock

Dimensions: Click here for dimensions.

Number of Bolts: 15

This PML heavy duty transmission oil pan fits Chrysler/Dodge 68RFE, 66RFE, 65RFE, 545RFE, and 45RFE transmissions. PML designed the pan specifically for trucks and SUVs needing the clearance for skid plates, frame or exhaust.

Benefits:

Finned to dissipate heat from transmission fluid
Heavy duty sand cast aluminum construction
Drain plug for easier maintenance
Thick walls to add strength to the transmission housing
Thick gasket flange, machined flat, for a leak-free seal
Shaped similar to stock pan to avoid many clearance issues with skid plates, exhaust and frame
Stock capacity

Applications

PML designed this stock capacity transmission oil pan to replace the stock pan on many configurations of these vehicles with a Chrysler Dodge 45RFE, 545RFE, 65RFE, 66RFE, and 68RFE. Although this transmission pan has the same capacity as the stock pan, the thick walls and fins on the bottom make it larger than stock.

Dakota with 4.7 V8, 2000 to 2011
Durango with 4.7 or 5.7 V8, 2000 to 2012

Ram 1500, 2002 to 2016 (2012 to 2014 4.7l engine trucks check clearance)
Ram 2500 and 3500, Hemi engine, 2006 to 2018 (clears the damper on 2012 Ram 2500 with 66RFE, INSTALLATIONS section)
Ram 2500 Power Wagon, Hemi engine, 2006 to 2018
Ram 2500 and 3500, with 6.7 liter diesel engine, 2007 1/2 and newer (some 3500 trucks may need an AS69RC pan)

Jeep Grand Cherokee with 4.7 or 5.7 V8 engine, 1999 to 2004
Jeep Liberty, 2002 to 2004, 3.7 (check clearance, see Jeep Transmission Pan Guidelines web page)
Jeep Liberty CRD, 2005 and 2006 (check skid plate)
Jeep Wrangler 2010 and 2011 2.8 Diesel (check skid plate)

Configurations vary. Always check your vehicle to verify transmission and clearance. List is not comprehensive and other vehicles may be able to use this pan. This pan will not work on 8 or 9 speed or Aisin transmissions.

2013 and newer diesel engine trucks: cooler lines routed under stock pans on passenger front corner. This pan may not fit. See PML deepest pan part number 11161 which is low in the passenger side, front corner and does clear the cooling lines.

Jeep owners: some Jeeps with these transmissions most likely do not have enough clearance for a larger transmission pan. See our Jeep Transmission Pan Guidelines web page.

Skid Plates: If you have a skid plate, you may need to move it downwards away from the transmission pan. Some Jeeps and a few Dodge vehicles have skid plates that limit clearance.

Installations

Pictures of Installations:

2003 Grand Cherokee
2006 Dakota
2007 Wrangler JKU Hemi/65RFE Swap
2012 Ram 1500 65RFE
2012 Ram 2500 66RFE

2003 Jeep Grand Cherokee

These pictures are from Tony who installed this PML Dodge transmission pan on his 2003 Grand Cherokee 4.7 V8. The second pictures shows the tip of the fins of the PML pan just visible and well above the frame.

Click on image to view larger.

2006 Dodge Dakota

These pictures are from Paul who installed this PML Dodge transmission pan on his 2006 Dakota, 4x4, 4.7L. The installation went well and he's gone on a 400 mile trip. Thanks to Paul for sending us pictures of his Dakota with a PML Dodge differential cover, with the stock transmission pan, and with the new PML transmission pan installed.

See more pictures in our Facebook album. You do not have to join facebook to view.

2007 Wrangler JKU Hemi/65RFE Swap

Bob swaped a Hemi 5.7L engine and 65RFE transmission into his 2007 Jeep Wrangler Unlimited (JKU). He updated the stock transmission pan with the PML transmission pan. The stock skid plates cover the 65RFE with PML pan installed. He thinks this PML pan will fit 2007 to 2011 JK unlimited with Jeep Speed Shop Hemi Kit 5.7 and 65RFE mount. He had no trouble installing the PML pan but had temporarily to remove trans mount and skid plates and trans crossmember.

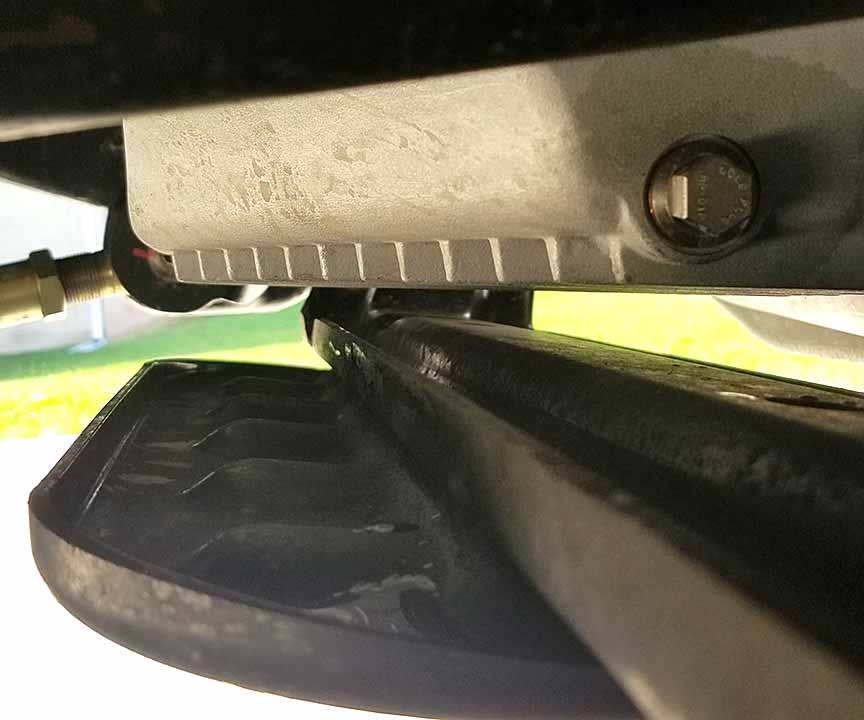

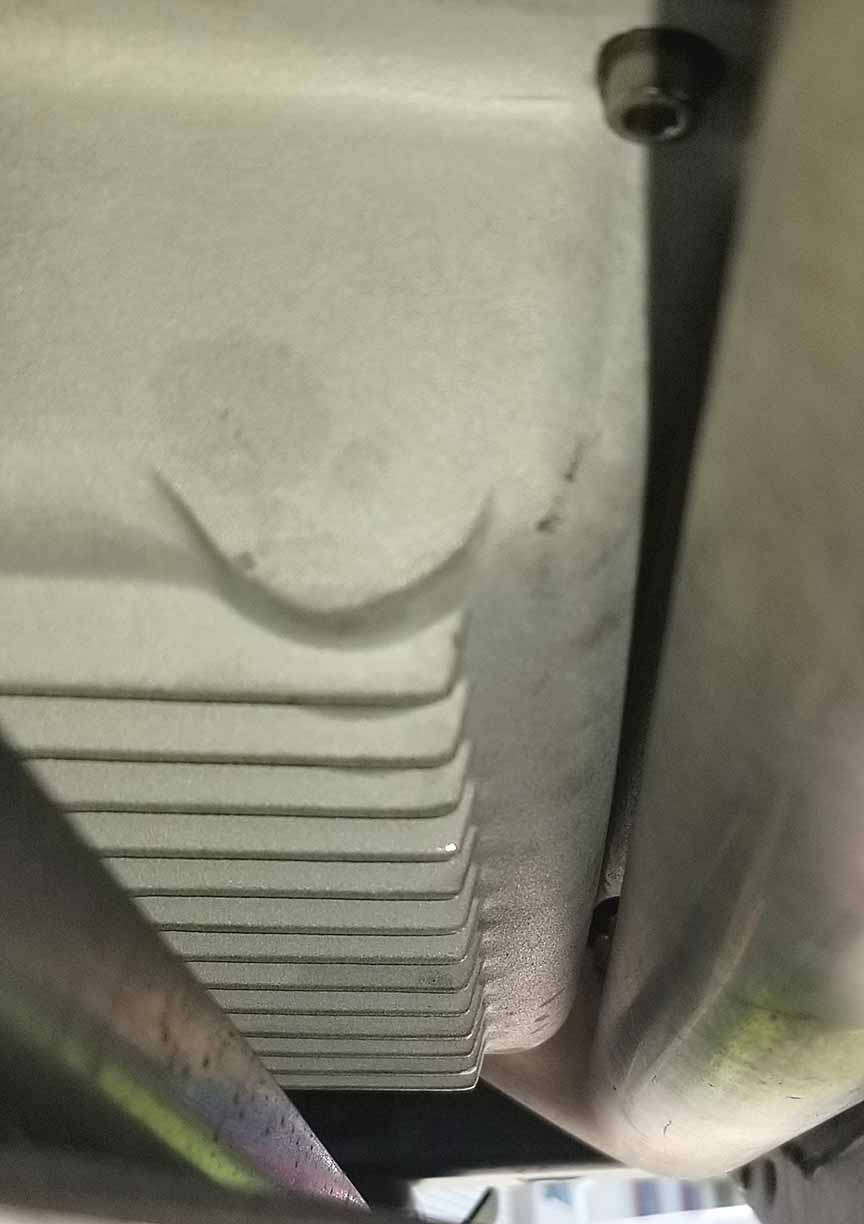

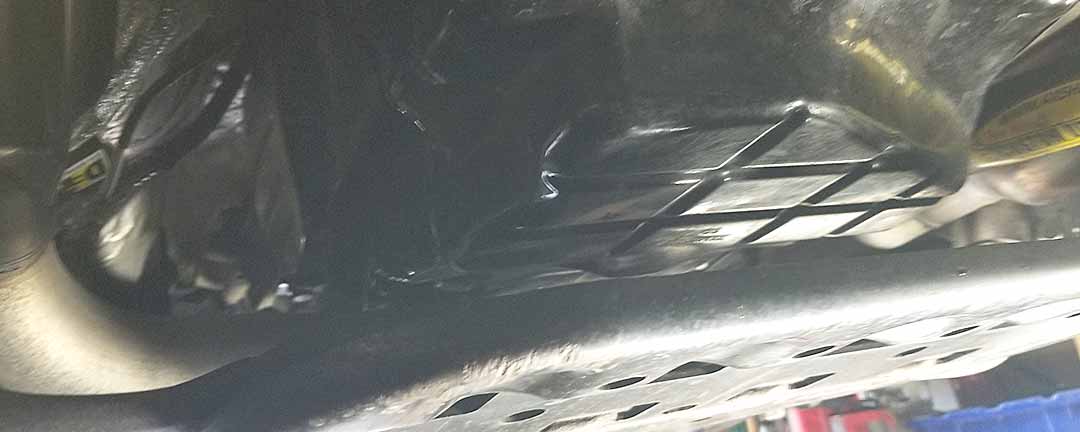

2007 Wrangler JKU Hemi/65RFE Swap 65RFE stock transmission pan PML pan fits with exhaust PML pan installed on 2007 Wrangler
Click on image to view larger in a new tab or window.

2012 Dodge Ram 1500 with 65RFE Transmission

Keith at Forest City Diesel in Missouri installed this transmission pan on a 2012 Dodge Ram 1500 Sport Crew Cab. He used a a TRANSTAR fiber gasket P/N 72300F. He report that the install was quick and simple. He torqued the pan bolts to 85 inch pounds and the drain to 20 foot pounds. He re-torqued the pan bolts after the trans went through a heat cycle, but they were fine. Keith summarized his installation with the comment concluded his comments with "Great pan!"

See more pictures in our Facebook album. You do not have to join Facebook to view.

2012 Ram 2500 with 66RFE Transmission

Click on image to view larger.

Larry installed this PML transmission pan on his 2012 Dodge Ram 2500 with the 66RFE transmissions. His dealer told him the cylinder on the crossover pipe is a vibration damper to reduce noise. Larry opted to leave the damper in place since this low profile pan provided clearance.

Specifications

Information is for reference only. Installer is responsible for installation, function and fitment.

Comparison of PML RFE Transmission Oil Pans

PML makes four pans for the 68RFE, 45RFE, 5-45RFE, 65RFE, 66RFE, 68RFE transmissions. All fit the transmissions. The different designs suit a variety of vehicles and applications.

Click on an image to view larger in a new tab or window.

Front of pans. 11078, 11079 and 11161 are parallel to ground when installed. 10304 slants toward the drain on the left/driver side when installed.

Rear of pans. 11078 and 11079 step down to clear the Hemi engine exhaust routing.

Inside of pans. Extra capacity pans, PML part numbers 11079, 10304, and 11161 have baffles to reduce sloshing, keep fluid near filter pickup, and act as heat sinks for cooling.

Included with PML Transmission Pan

PML includes new mounting bolts and a magnetic drain plug with sealing washer with each pan.

Click on image to view larger.

Filter Information

This pan works with OEM/stock filters.

The filter bolts on to the valve body. No filter support or extension is needed. The fluid will be at the same level with a stock pan as with the PML pan. The filter will pick up from the same place. PML designs pans and covers to work with stock parts without the need for additional modifications or complications.

Thanks to Eric who provided part numbers for filters that will work with all PML Dodge RFE pans:

OEM: 5013470AE
Fleetguard: TF15072
FRAM: FT1223
WIX: 58843 (kit)

This is MOPAR 5013470AE:

Click on image to view larger. Note there is a part number on the filter but that number does not correspond to the filter part number.

There was an old style filter from 2002 or 2003 that does NOT work with this pan. We have heard that these filters are obsolete. These filters were called 2WD filters and had a short pick up tube.

Gasket Information

For a gasket, PML recommends an inexpensive cork or cork composite type gasket. Dodge/Chrysler recommends the Mopar silicon gasket maker, which comes in a tube, for many Chrysler, Dodge, Ram and Jeep vehicles. This will also work fine with a PML pan.

An example of a cork gasket is Transmaxx 72300, shown below.

Click on a small image to view larger in a new tab or window.

Bolts

PML includes new mounting bolts with the transmission pan. The PML bolts are longer and the thread diameter and threads per inch are the same. PML bolts are longer since the flange on the PML pan is much thicker than the flange on the stock OEM pan.

Five holes on the transmission are NOT through holes. Check that the PML bolts do not bottom out. This depends on the thickness of the gasket and depth of holes in the housing.

Make sure the holes on the housing are clean and free of debris.

PML bolts are longer because of the thick flange on the PML pan. Click on image to view larger.
