Volume: 0.75 quarts over stock
Dimensions:
Click here for dimensions.
The PML cover is 1 inch deeper than the 2003 stock cover.
Number of Bolts: 14
This PML differential cover fits the American Axle Manufacturing (AAM) rear axle with 11.5 inch (292mm) or 11.8 inch (300mm) ring gear found on Ram heavy duty trucks.
Benefits:
- Extra capacity
- Open interior and shape similar to stock cover
- Drain, oil fill, and level check holes to make it easy to follow the 15K oil change interval
- Magnetic drain plug and new mounting hardware included
- Finned for heat dissipation
- Heavy duty, sand cast aluminum construction
- Machined gasket flange for a secure seal
- Option for temperature sensor machining
PML designed this cover for 2003 to 2018 Ram diesel trucks with the AAM 11.5 or 11.8 inch ring gear rear differential. Trucks which may be able to use this cover include:
- Ram 2500, 2003 to 2013
- Ram 3500, 2003 to 2018 (maybe some 2019 and newer?)
- Some GM/Chevy Heavy Duty trucks
Always check your vehicle to verify differential and clearance. Configurations vary. See notes below.
2019 and newer trucks: The cover for most 2019 and newer trucks is similar but NOT interchangeable.
See PML Part Number 11176.
Check OEM cover shape and Mopar gasket part number.
Ram 2500, 2003 to 2013: Most gas engine trucks and a some diesel engine trucks have an AAM 10.5 differential, which is PML Part Number 10302. Compare the shape of the OEM covers to determine which your truck has.
Trucks With Brackets, Sway Bars, and Pan Hard Bars (2014 to 2018 Ram 2500): For trucks with brackets holding the brake line, sway bars or pan hard bars, see PML Part Number 11147. This is most all 2014 to 2018 Ram 2500 and Ram 3500 trucks with optional air bag leveling.
Silverado or Sierra 2500HD 8.1 or diesel, 3500 or 3500HD with this AAM 11.5 rear: If you choose to use this cover, part number 10361, you have to bend the brake bracket located at the top of the cover. PML part number 9511 fits the same differential and accommodates the brake bracket.
There are several gear ratios for this differential, such as 3.42 and 3.73. The ratio does not change the ring gear size, 11.5 or 11.8 inches.
Our customers have installed this PML differential cover on many Ram 2500 and 3500 trucks.
- 2019 Silverado 3500
- 2018 Ram 3500 Diesel 4WD
- 2018 Ram 3500 Diesel
- 2017 Ram 3500 Diesel
- 2014 Ram 3500 Diesel
- 2014 Ram 2500 Diesel
- 2013 Ram 2500
- 2011 Ram 2500 Diesel
- 2007.5 Ram 2500 Diesel
- 2006 Ram 2500 Diesel
- 2005 Ram 2500 Diesel
- 2005 Ram 2500 Diesel Lifted
- 1949 Power Wagon FiveR
2019 Silverado 3500
Tim installed this PML Differential Cover on his 2019 Silverado 3500.
2019 Silverado 3500
PML Cover installation
PML Cover installed
PML Cover
Click on image to view larger in a new tab or window.
2018 Ram 3500 Diesel 4WD
David installed front and rear differential covers on his 2018 Ram 3500 SLT 6.7l diesel. PML front AAM 9.25 front cover also fit great.
2018 Ram 3500 SLT 4WD Diesel
OEM rear differential cover
differential gears
PML front differential cover installed
2018 Ram 3500 SLT 4WD with PML rear differential cover installed
Click on image to view larger in a new tab or window.
2018 Ram 3500 Diesel
Chris installed this PML differential cover on his 2018 Ram 3500 6.7 Cummins. He also installed front differential cover Part Number 11136. This is the second truck he has put PML covers on.
2018 Ram 3500 Diesel
Stock cover
PML rear cover
PML front cover
Click on image to view larger in a new tab or window.
2017 Ram 3500 Diesel
Nick has a 2017 3500 Dodge Ram 4 wheel drive, single wheel rear axle truck, and he purchased PML front and rear differential covers for it. He reported: "It was an easy install with no problems fits perfect."
Click on image to view larger.
2014 Ram 3500 Diesel
Corey installed this cover on his 2014 Ram 3500 diesel with no problem. He also installed PML's 12 bolt front differential cover.
2014 Ram 3500 Diesel With PML Differential Cover Installed
Click to view larger image

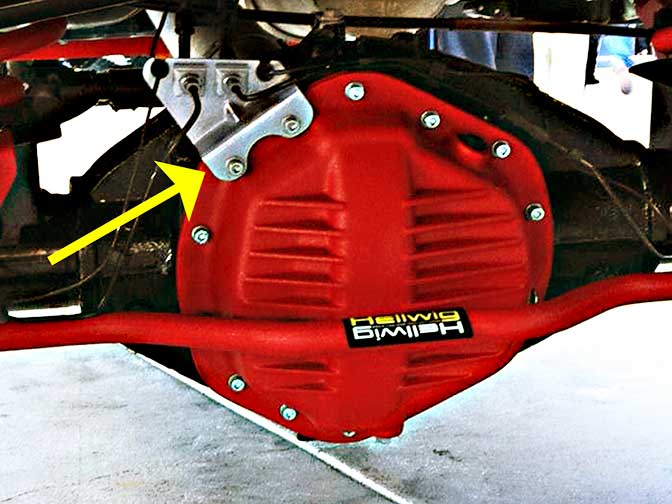

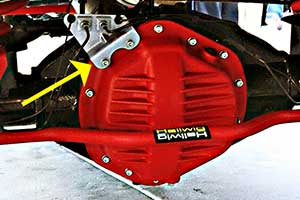

2014 Ram 2500 with Hellwig Sway Bar
Andrew Lowe installed PML covers and pan on his 2014 Project Bloodhound Ram 2500 4x4 6.7 Turbo Diesel. Because the truck is lifted and has a Helwig Sway Bar, Andrew used this larger PML cover instead of PML part number 11147. Andrew customized the covers with red powder coating.
PML front cover, part number 11136 shown in first picture,
PML RFE transmission pan, part number 10304 shown in middle picture, and this PML rear differential
cover shown installed in last picture. Our thanks to Andrew for including PML on his projects.
Click on images to view larger.
2013 Ram 2500
Andrew Lowe's "Game Over" Ram 2500 includes PML covers and transmission pan.
The front differential is an American Axle 9 ¼ inch ring gear, PML cover part number 11118, the rear is an American Axle 11½ inch ring gear, PML cover part number 10361. For a PML 68RFE transmission pan, see PML pan part number 11161.
From left to right: front, rear, 2013 Ram 2500 Game Over Truck
Click on images to view larger.
2011 Ram 2500 Diesel
Jim installed this PML cover on his 2011 Ram 2500 ST G56 6.7 Cummins.
Click on images at left to view large in a separate window or tab.
2007.5 Ram 2500 Diesel
Cameron installed this PML cover on his 2007.5 Dodge Ram 2500, 6.7L Cummins, 11.5 AAM differential.
2007.5 Ram 2500 Diesel
Fill and level check holes on PML cover on passenger side
PML cover installed
PML cover looks good
Click on image to view larger in a new tab or window.
2006 Ram 2500
Jeff was "really happy" with the covers. PML front cover is Part Number 11118. The PML transmission pan is Part Number 9393.
PML rear differential cover on 2006 Ram 2500
PML front differential cover installed on a 2006 Ram 2500
PML transmission pan on 2006 Ram 2500
2006 Ram 2500
Click on image to view larger in a new tab or window.
2005 Ram 2500
Marc installed these covers on his 2005 Dodge Ram 2500 4x4. He emailed us that he only installs the best parts on his truck. Happy that PML is on his list. He installed both PML front differential cover and this rear covers. He plans to install a PML transmission pan soon.
2005 Ram 2500
front differential, PML cover installed
stock rear differential cover
PML rear differential cover installed
sway bar and PML differential cover
Click on image to view larger in a new tab or window.
2005 Ram 2500 Lifted
PML differential cover installed on Michael's 2005 Dodge Ram 2500, 4x4, Quad Cab Long Bed 4x4, Diesel, with 3 inch lift. Our thanks to Michael for the great animation!
1949 Power Wagon FiveR
1949 Dodge Power Wagon built by the crew at Five R Trucks. PML Rear Differential Cover installed. PML Part Number 11118 Front Differential Cover also installed.
Power Wagon
Rear Cover
Front Cover
Click on image to view larger in a new tab or window.
Drain, Oil Fill, Level Check and Hardware
Click on image to view larger in a new tab or window.
This differential cover has oil fill, level check, and drain holes to make it easy to follow the 15K oil change interval that Dodge specifies for the AAM axles used in 2003 and newer Ram 2500 and 3500 trucks.
The drain is on the bottom of the cover. A magnetic drain plug is included. The fill hole is near the top at the 1 o clock position. Level check hole is on the side at the 3 o clock position. The level check hole is at the same relative location as the OEM cover level check hole. This means that you check the fluid level the same way with the OEM cover as with the PML cover.
PML includes plugs, mounting bolts and a magnetic drain plug with each cover.
Optional Machining for Temperature Sending Unit
For people who have an aftermarket gage monitoring the differential fluid temperature, this cover has a location that can be machined for the sending unit. The area about the 4 o clock position can be drilled and tapped for a 1/8 NPT hole for the sending unit. Optionally, PML can machine the hole and there is a custom machining charge. Select this option before clicking ADD TO CART. Verify the thread specification of your aftermarket temperature gage sending unit before ordering. Customer must select this option. By default, the 1/8 NPT is NOT machined.
Front Cover for 4WD Trucks
PML also makes a cover for the front differentials on Dodge Ram trucks. On our front covers, PML keeps the profile close that of the stock cover to avoid interference with the steering, frame or suspension.
For the 14 bolt front cover: see PML's AAM 9.25" 14 bolt front differential cover
For the 12 bolt front cover (2013/2014 and newer trucks):, see PML's 12 bolt front differential cover
Inside of Cover
Click on an image to view larger in a separate tab or window.
This cover follows the same general curved profile as the stock cover.
