PML GM 6L80, 6L80E Deep Transmission Pan

Purchase GM 6L80, 6L80E Deep

GM 6L80, 6L80E Deep
Part Number 11025
For GMC, Chevrolet, and Cadillac 1/2 ton trucks and SUVs, such as Silverado/Sierra 1500.

Some 2019 trucks have the 6L80 with the level check on the pan itself. Contact us if your truck has this configuration.

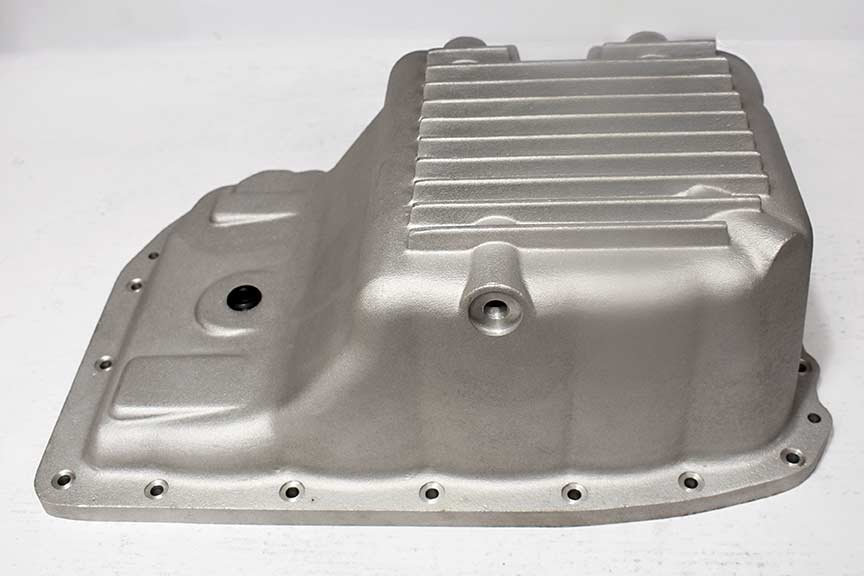

Pan includes magnetic drain plug and mounting hardware. Price varies with finish. SEE PRODUCT INFO.

$0.00
Finish:

OPTIONAL: add machining of a 1/8 NPT hole for an aftermarket temperature sending unit: No machining Add hole on driver/left side + $75.00 Add hole on passenger/right side toward the front + $75.00 Add hole on passenger/right side toward the rear + $75.00
Qty

Description

Volume: 2 quarts over stock

Dimensions: Click here for dimensions.

Number of Bolts: 18 (there are 20 holes, 2 holes locate the gasket and 18 holes for bolts to hold the pan to the transmission case)

Many 1/2 ton GMC and Chevy trucks and SUVs starting in 2009 have a 6 speed 6L80 transmission and can benefit from this PML transmission pan.

Benefits:

Extra capacity
Step to clear exhaust routed under rear of transmission pan (loosen pipe to install)
Fins and aluminum construction to dissipate heat from transmission fluid
Drain and magnetic drain plug for easier maintenance
Thick walls to add strength to the transmission housing
Thick gasket flange, machined flat, for a leak-free seal

The 6L90 pan is similar in shape but is longer at 18 1/2 inches and is found on 3/4 ton trucks and SUVs.

Applications

This extra capacity heavy duty transmission oil pan fits GM 6 speed hydramatic 6L80, 6L80E transmissions. PML designed this pan for 2007 and newer Chevrolet and GM trucks and SUVs, such as these vehicles:

Avalanche 1500, 2009 to 2014
Escalade, 2007 to 2014 and some 2015 and newer, V8 6.2L
Hummer H2, 2008 to 2009, V8 6.2L (if with undercarriage protection, see 6L80 stock capacity pan)
Sierra 1500, 2009 to 2014 and some 2015 and newer, V8 5.3L or V8 6.0L or V8 6.2L
Sierra Denali, 2007 to 2014 and some 2015 and newer, V8 6.2L
Silverado 1500, 2009 to 2014 and some 2015 and newer, V8 5.3L or V8 6.0L or V8 6.2L
Suburban 1500, 2009 to 2014 and some 2015 and newer, V8 5.3L or V8 6.0L (includes HD)
Tahoe, 2009 to 2014 and some 2015 and newer, V8 5.3L or V8 6.0L
Yukon, 2009 to 2014 and some 2015 and newer, V8 5.3L
Yukon Denali, 2007 to 2014 and some 2015 and newer, V8 6.2L
Yukon XL 1500, 2009 to 2014 and some 2015 and newer, V8 5.3L or V8 6.0L

Trucks and SUVs have a variety of configurations. Look at yours before you order to verify your transmission and clearance.

If you have skid plates, undercarriage protection or require a lower profile pan, check our stock capacity pan for the 6L80, 6L80E.

Note to 2015 and newer vehicle owners: GM introduced an 8 speed transmission in 2015 and a 10 speed in 2019 so check your configuration

Some vehicles have the 4 speed 4L60 transmission and can use PML part number 9427.

Camaro, Corvette, G8, Cadillac cars with the 6L80, 6L80E transmission: please see PML's stock capacity pan, which requires less clearance than this extra capacity pan. It is PML part number 11087.

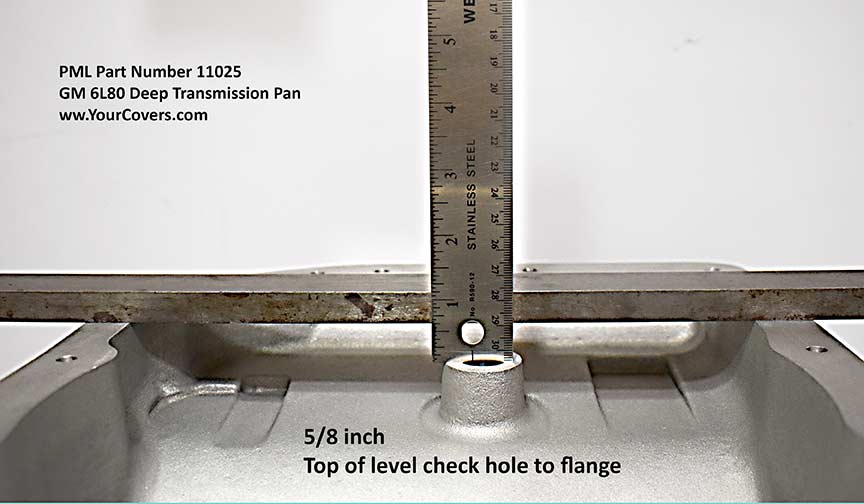

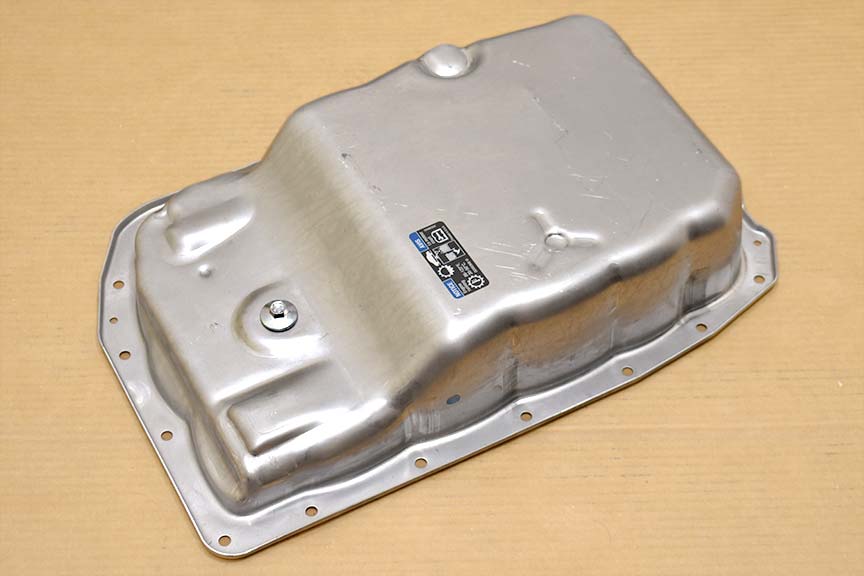

Pan Fill/Level Check, 2019 Trucks: Some 2019 trucks have the 6L80 with the level check on the pan itself. These trucks do not have a dipstick. Contact us if your vehicle needs to check fluid levels or fill through the pan. This pan can be modified for pan filling. Please call or email if you want this deep pan and need to fill or check fluid level in he pan.

Loosening the exhaust pipe for installation: You might need to lower the exhaust cross over pipe to install this pan or do a service with the stock pan. Some customers recommend loosening the exhaust flanges at the manifolds with a crow's foot socket wrench. See Installations.

Installations

Truck Trend/RV Magazine Installation

2018 Sierra

2014 Silverado V6
2014 Silverado V8
2014 Silverado
2009 Silverado 1500

2014 Tahoe

2013 Suburban
2009 Suburban

2011 Avalanche

2010 GMC 1500 Denali

2008 Escalade
2007 Escalade

Truck Trend/RV Magazine Installs PML Transmission Pan and Temperatures Drop

The January/February 2014 Tech & How-To section goes through the installation and testing of a deep PML 6L80 transmission pan on a 2012 Chevrolet Silverado. Here's a quote from the end of the article:

"Our testing route took us on a 26-mile loop, up and down 6-percent grades the whole way. On the final hill where we noted our temperatures it takes about 10 minutes to reach the summit at 55mph. Before the PML pan, our transmission temperature measured 159 degrees at the base of the hill and 210 degrees at the top. Once over the top and coasting down the backside, the temperature continued to rise, hitting 218 degrees before starting to cool down five or six minutes later. With the PML pan, our temperature was 160 degrees at the base and 192 degrees at the summit. That’s a pretty decent difference, but what was really fun was how quickly it cooled back down. Almost immediately after cresting the hill, the temp began to drop, more than 5 degrees in about a minute. Impressive."

Blattenberg, Adam. "Transmission Stamina." RV Magazine January/February 2014: 52-4. Print. Link to full article on line: http://www.trucktrend.com/how-to/transmission-drivetrain/1402-pml-transmission-2012-chevrolet-sliverado-1500-tech

2018 Sierra Elevation

For a custom look, Craig painted his PML transmission pan. Very cool!

2018 GMC Sierra Stock transmission pan PML pan, custom green, on a 2018 Sierra
Click on image to view larger in a new tab or window.

2014 Silverado 1500 V6

Ian Macdonald at Dark Side Oils in Sarnia, Ontario, Canada, installed this PML pan on his 2014 Silverado 1500 with the V6 engine. He had these comments about the installation and temperature readings:

" Just wanted you to know that I installed my new 11025 trans pan on my 2014 Silverado 2wd with 4.3 V6 and there are no interference issues whatsoever. There is plenty of clearance between the tranny and the exhaust crossover making this install a breeze. BTW as other reviews have stated this pan is awesome, well made, very solid and looks great!!"

" I was able to do a before and after driving comparison as well. As it happened I had to drive 180kms one way and had the cruise set at 115 kph (approx. 70 mph) with outside temp (as displayed on my DIC) of 9 deg C for the whole trip. Terrain was southern Ontario were things are fairly flat. Trans fluid temp was 88 deg C and steady for the last hour of the trip. I then changed the pan and refilled with 7.6 qts of AMSOIL Trans Fluid. My return trip the next day on the same route and distance at the same 115 kph set on the cruise control and ambient temp was now 12 deg C. The tranny ran at a steady 85 deg C for the last hour of this return trip. In both cases there were no stops. Considering the ambient temp was 3 deg warmer and the fluid was 3 deg cooler the net differential was 6 deg C (10.8 deg F). Not bad at all I’d say!!!"

2014 Silverado 1500 V8

Anthony sent us these pictures of his 2014 Silverado 5.3 V8 installation of this PML transmission pan.

Transmission pan gasket for 2014 Silverado on PML pan 2014 Chevy Silverado 1500 V8 2014 Silverado stock transmission pan PML transmission pan installed on 2014 Silverado 1500 5.3
Click on image to view larger in a new tab or window.

2014 Chevy Silverado 1500 4wd 5.3L

Viktor installed this PML transmission pan on his 2014 Chevrolet Silverado 1500 5.3L 6L80 LTZ 4x4. He also installed GM PML differential cover P/N 11129

PML Pan PML cover
Click on image to view larger in a new tab or window.

2009 Silverado 1500

This Silverado 1500 4x4 has Pacesetters Longtube headers in addition to a PML 6L80 transmission pan. Andrew did not have to drop the exhaust to install the PML pan or to do filter changes.

2009 Silverado 1500 with PML transmission pan and Pacesetter Longtube Headers installed 2009 Silverado 1500 4x4
Click on image to view larger in a new tab or window.

2014 Chevy Tahoe 5.3L

Georgio installed this PML transmission pan on his 2014 Tahoe. He also installed a PML rear differential cover. He plans to do the same for his 2010 Silverado. Our thanks to Georgio for choosing PML covers and pans.

Click on image to view larger.

2013 Suburban

Frank in New York installed this PML transmission pan on his 2013 Suburban. He emailed us pictures and let us know the pan worked great. Click on these images to view larger in a new tab or window:

2009 Suburban

Alex installed the black powder coated PML pan on his 2009 Chevrolet Suburban LTZ 5.3 V8. Looks good and no leaks.

Getting ready to installed a PML pan on a 2009 Suburban LTZ 5.3 2009 Suburban with PML 6L80 transmission pan installed
Click on image to view larger in a new tab or window.

2011 Avalanche

Steve installed this pan on his 2011 Chevrolet Avalanche LTZ 4WD 5.3 liter with a 6L80E transmission. The first image shows the stock pan and the exhaust crossover pipe. The center and right images show the PML pan installed. Steve loosened both exhaust flanges at the manifolds to allow the exhaust crossover pipe to drop down about a half an inch. This provided room for removing the stock pan and installing the PML pan. He captured 5.3 quarts of fluid and refilled with 8 quarts. Steve said "The fit and finish of your pans are incredible. I followed the instructions provided and reused the silicone gasket from the stock pan."

2010 GMC 1500 Denali at Leon's Transmissions

Leon's Transmissions in Garden Grove, 714-534-3300, installed a black powder coated deep 6L80 pan on a 2010 GMC 1500 Denali. To get the pan installed, they loosened and dropped the exhaust. Leon's also installed a PML differential cover on the truck.

2008 Cadillac Escalade 6.2L

A hot climate and harsh driving conditions led Ahmad to look for a pan to cool the transmission fluid in his 2008 Escalade 6.2. Although the polish finish pan is usually only for show trucks, it does look great on this daily driver. Our thanks to Ahmad for choosing a PML pan and for the pictures.

Click on image to view larger.

2007 Cadillac Escalade

Dave installed our 6L80 transmission pan on his 2007 Cadillac Escalade EXT AWD, 6.2 liter engine. He got the pan in the cast finish then painted it engine semi gloss black and sanded off the high points. For the installation, the exhaust had to be off the manifolds on both sides to get clearance for the pan. For the stock pan, only the right side needed to be off. He used the stock reusable gasket. He saw a temperature drop of 10F, no towing, no other modifications.

Specifications

Filter and Gasket Information

Inside of PML 6L80 deep pan. Click on image to view larger.

PML transmission pans work with stock filters, easily available from your favorite auto parts store.

Because the pan is deeper than stock, the pan has filter supports cast in. The transmission fluid is at the same level with a PML pan as with the stock pan.

The stock GM filter is "GM Part No. 24236517" and the AC Delco box has part number "24236933".

6L80E transmission, filter and gasket. Click on image to view larger.

PML designed this pan to accommodate the reusable factory gasket. Please make sure the gasket is clean and free of any holes or nicks to avoid leaks.

The gasket has two bumps to orient the gasket on the pan and hold it in place during installation.

Drain Hole and Optional Temperature Sending Unit Machining

The drain is on the driver/left side as shown in the first image. The hole is at the bottom of the pan for thorough draining and on the side to avoid road hazards.

Click on image to view larger.

Optionally, PML can drill and tap a 1/8 NPT hole for a temperature sending unit. This would be for an aftermarket temperature gage. There is a custom machining charge.

Three bosses (thick areas) are provided that can be machined. One location is on the driver or left side and the other two are on the passenger or right side.

Select the option before adding pan to cart. A plug for the hole is included.

The standard size is 1/8 NPT. Check your aftermarket gage to verify the thread specifications for the sending unit before ordering. Call or email if you need a different size.
